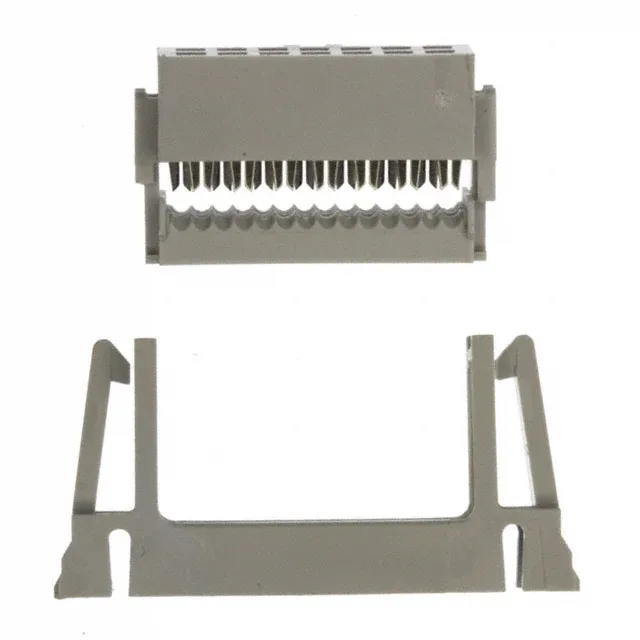

Amphenol ICC Quickie™ IDC receptacle, 14 positions, 2 rows, 0.100" (2.54mm) pitch, 30.0µin gold female sockets, free-hanging, latch lock, 28-30 AWG ribbon cable.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Wire type | Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Wire gauge | 28-30 AWG |
| Cable termination | IDC |
| Color | Gray |
| Pitch | 0.100\" (2.54mm) |
| Package | Tube |
| Features | Feed Through, Polarizing Key, Strain Relief |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 14 |
| Contact finish thickness | 30.0µin (0.76µm) |
The Amphenol ICC 71600-614LF is a 14-position, dual-row IDC receptacle from the Quickie™ series, designed for mass-termination to 28-30 AWG ribbon cable. It uses a 0.100" (2.54mm) pitch on both contacts and rows, matching the standard spacing of common rainbow or gray ribbon cable.
The 30.0µin (0.76µm) gold finish on the female socket contacts is a heavy plating grade.
The 71600-614LF is a receptacle that mates with a 14-position, 0.100" pitch, dual-row male header from the Quickie™ series. The latch lock on the receptacle engages the corresponding slot on the header for secure retention.
