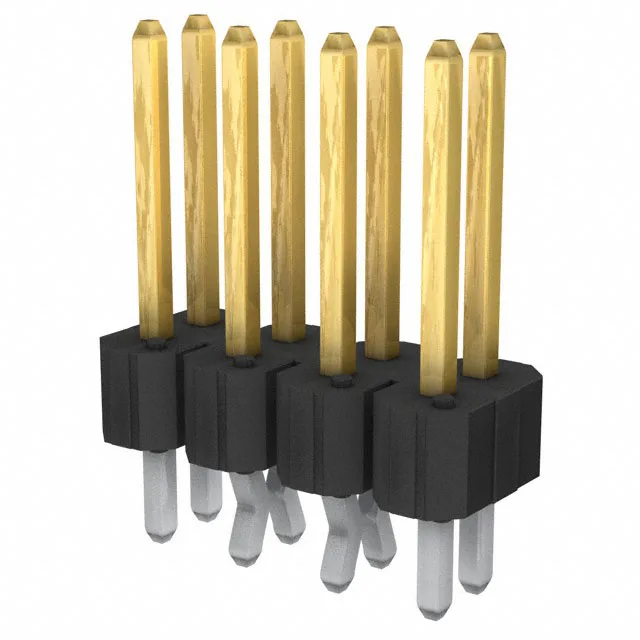

Amphenol ICC (FCI) BERGSTIK II header, order code 78548-208HLF, 8 positions, dual row, 0.100" (2.54mm) pitch, gold or GXT mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.538\" (13.67mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 78548-208HLF is the 8-circuit member of Amphenol ICC (FCI)'s BERGSTIK II header line, dual-row, 0.100" (2.54mm) pitch. Unshrouded push-pull fastening, through-hole kinked pin termination.
Overall contact length is 0.538" (13.67mm); the post length below the insulator is 0.120" (3.05mm). Housing is UL94 V-0 rated PCT.
The insulator material is PCT, rated UL94 V-0.
