Amphenol 82-202-RFX

Amphenol RF 82-202-RFX N Type Plug, 50 Ohm, 11 GHz, Solder

MPN 82-202-RFX
Active

Amphenol RF N Type plug, male pin, 50 Ohm, 11 GHz, 1500 V, solder contact, clamp shield, weatherproof, includes 6-piece assembly kit.

$14.4700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

82-202-RFX key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
IP ratingWeatherproof
Cable groupRG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

82-202-RFX additional specifications
ParameterValue
PackageBulk
Includes6 pcs - 1 Connector, 1 Braid, Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationClamp
Contact terminationSolder
Center contact platingGold

Product details

N Type Plug for RG-8 Class Coax — 50 Ohm, Solder Termination

The 82-202-RFX: It covers the full N Type band up to 11 GHz with a listed insertion loss of 0.15 dB — clean enough for most base station, antenna feed, and test equipment runs. The 1500 V rating is higher than typical N Type signal connectors, so it handles moderate power levels without breaking a sweat. The threaded coupling gives a positive mechanical lock; the weatherproof rating means it holds up outdoors when mated with a compatible N Type jack.

What You Get in the Kit — and What It Needs on the Cable

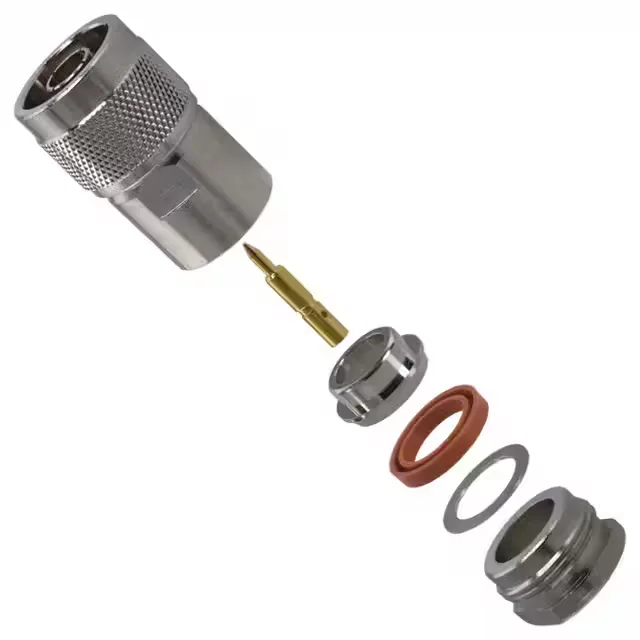

This is a kit, not just a bare connector body. The package includes 6 pieces: the connector shell, a braid clamp, a second clamp, the centre contact, a gasket, and a washer. The centre contact is solder-terminated — you tin the centre conductor and flow solder into the cup. The shield is clamped over the braid with the included hardware. The cable group covers RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 — all medium-diameter coax with a similar dielectric and braid diameter.
