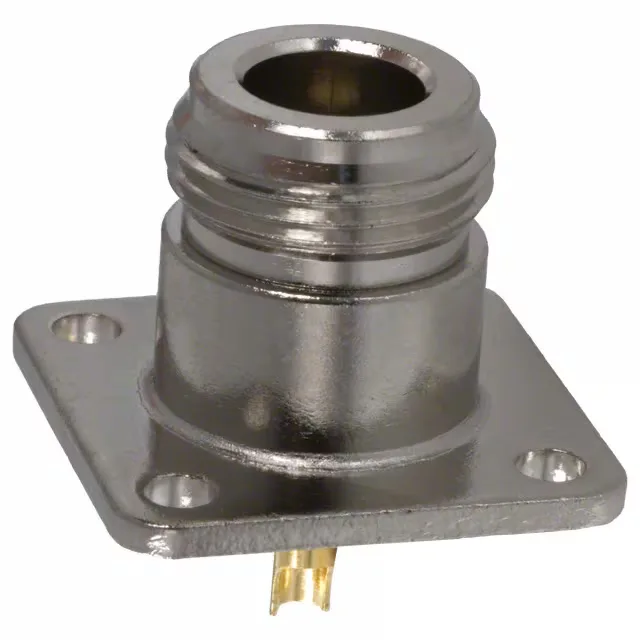

Amphenol RF 82-97-RFX N-Type Jack, 50 Ohm, 11 GHz

MPN 82-97-RFX
Active

Amphenol RF N Type, Jack, Female Socket, 82-97-RFX, 50Ohm, 11 GHz, 1500 V, Panel Mount, Flange, Solder Cup, Gold Center Contact, Bulk.

$10.3400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

82-97-RFX key specifications
ParameterValue
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Mounting featureFlange
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk

All specifications

82-97-RFX additional specifications
ParameterValue
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

N-Type Jack for 50 Ohm RF Systems Up to 11 GHz

The 82-97-RFX: It is a panel-mount flange version intended for bulkhead or chassis installation where the connector body is fixed and the cable attaches via the rear. With a voltage rating of 1500 V and insertion loss of 0.15 dB, this jack suits RF power feeds, antenna ports, and test equipment interfaces where signal integrity and mechanical retention matter.

The 1500 V rating gives headroom for RF power amplifiers and antenna feed lines where peak envelope voltage can exceed 1 kV. For applications below 1 GHz, the loss figure is negligible; the connector's real value is the repeatable impedance match across the full band.

That means you tin the centre conductor of the coax, insert it into the cup, and solder. The shield braid is fanned over the body and soldered or clamped depending on the cable preparation. This is a field-terminable design for RG-type cables where a crimp die is not available, though a crimp version (like the 082-4425-1003 plug) is the more common production method.
