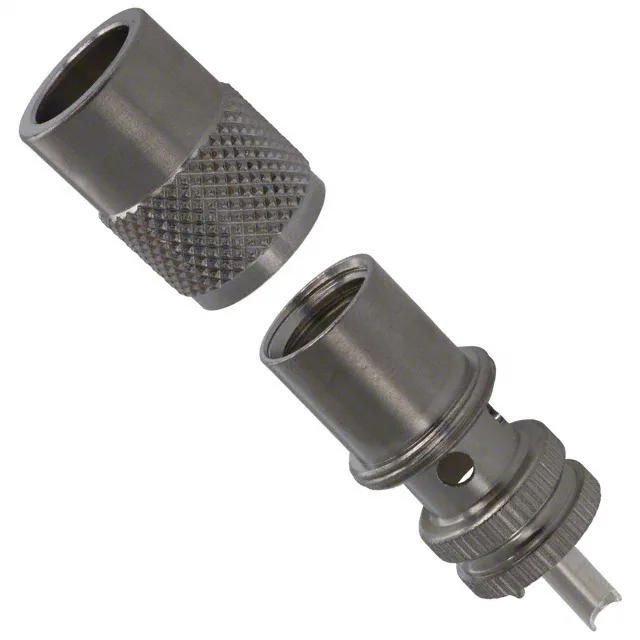

83-822 — Amphenol product photo
Amphenol

Amphenol 83-822 PL-259 UHF Plug, 50 Ohm, 300 MHz, Solder

MPN83-822
Active

Amphenol UHF series, PL-259 plug, male pin, 50 Ohm, 300 MHz, solder termination, nickel-plated brass body, silver-plated center contact, bulk package.

$13.4900Ref. price · indicative, final on quote
StockIn Stock (24)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

83-822 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max300 MHz
Cable groupRG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
FeaturesPL-259
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingSilver

Product details

PL-259 UHF Plug for RG-8/9/213/214 Cable Groups

The Amphenol 83-822 is a PL-259 UHF-series plug, the standard male connector for two-way radio, marine VHF, and amateur radio antenna feeds. The connector accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cable groups, covering the common RG-8 and RG-213 feeder cables used in transmitter-to-antenna runs.

Solder Termination and Assembly

The nickel-plated brass body and silver-plated brass center contact provide a corrosion-resistant RF path. The threaded fastening gives a vibration-resistant mate that holds 500 mating cycles before the plating wear shows.

Frequently asked questions

Is 83-822 a PL-259 connector and what is its impedance?

Yes, the 83-822 is a PL-259 UHF-series plug with a 50 Ohm impedance, rated to 300 MHz maximum frequency.

What cable groups are compatible with Amphenol 83-822?

The 83-822 accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cable groups — the standard RG-8 and RG-213 feeder cables used in transmitter-to-antenna runs.

What is the cross reference or equivalent for Amphenol 83-822?

The 083-8SP-1006 covers the same cable group with a crimp shield termination instead of solder, which may suit higher-volume harness builds.
