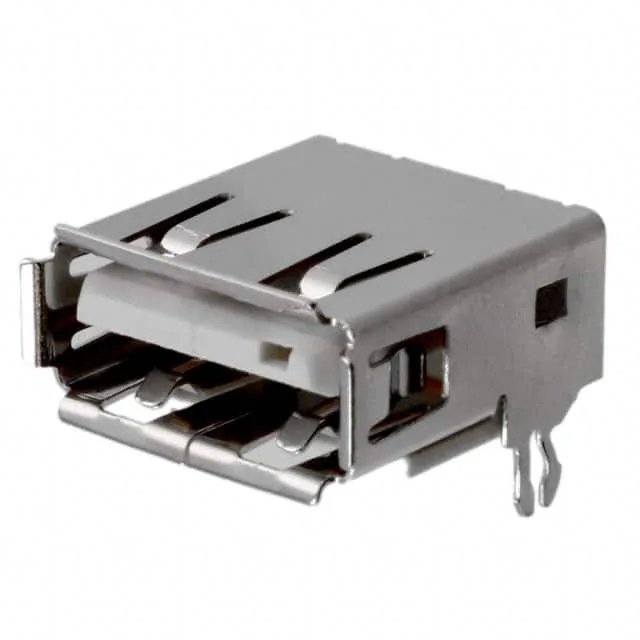

87583-3010RPLF — Amphenol product photo
Amphenol

FCI 87583-3010RPLF USB-A Receptacle, SMT Right-Angle, 4-Pin

MPN87583-3010RPLF
Active

FCI 87583 series USB-A (USB Type-A) receptacle, 4 contacts, USB 2.0, SMT right-angle mount, unshielded, gold GXT contact finish, board lock, 3 A, 1500 mating cycles.

$1.0800Ref. price · indicative, final on quote
87583-3010RPLF datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87583-3010RPLF Technical Specifications
ParameterValue
Series87583
Mounting typeSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Current rating3A
Positions4
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Lock
ShieldingUnshielded
TerminationSolder
Mating cycles1500
Contact finishGold, GXT™
SpecificationsUSB 2.0
Number of ports1

Product details

Right-Angle SMT USB-A Receptacle for Board-Level USB 2.0

The connector is unshielded, so it relies on the cable assembly or system enclosure for EMI containment rather than an integral metal shell. A board lock feature is integrated into the SMT footprint.

Board Lock and SMT Assembly Fit

For a contract manufacturer, the reel packaging and SMT compatibility keep the line running without a hand-place step.

What the 3 A and 1500 Mating Cycles Mean

The 3 A per-contact rating covers the USB 2.0 VBUS current requirement for most downstream devices.

Unshielded — When That Works

The 87583-3010RPLF is unshielded, meaning there is no metal shell over the receptacle body. This is acceptable when the USB cable itself is shielded and the system enclosure provides the ground path, or in low-noise internal wiring where the signal integrity margin is high.

Frequently asked questions

Is 87583-3010RPLF shielded?

No, the 87583-3010RPLF is unshielded. There is no metal shell over the receptacle body, so EMI containment relies on the cable assembly or system enclosure.

Does 87583-3010RPLF have a board lock?

Yes, the 87583-3010RPLF includes a board lock feature that anchors the connector to the PCB during reflow, preventing lift-off under cable strain.

What is the difference between 87583-3010RPLF and 87583-3010RLF?

The 87583-3010RLF is functionally identical — same 4 contacts, 3 A rating, USB 2.0 spec, board lock, 1500 mating cycles, and right-angle SMT mount. The only difference is the insulation color: the 87583-3010RPLF is black, while the 87583-3010RLF is white.
