Amphenol RF 901-10309 SMA Receptacle, 50 Ohm, 18 GHz

MPN 901-10309
Active

Amphenol RF SMA receptacle, female socket, 901-10309, 50 Ohm, 18 GHz, board edge end launch, gold body, solder tab termination, 1 port, bulk.

$8.9200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

901-10309 specifications
ParameterValue
MountingBoard Edge, End Launch
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles100
Number of ports1
Shield terminationSolder
Contact terminationSolder Tab
Center contact platingGold

Product details

SMA Receptacle for Board-Edge RF Launches

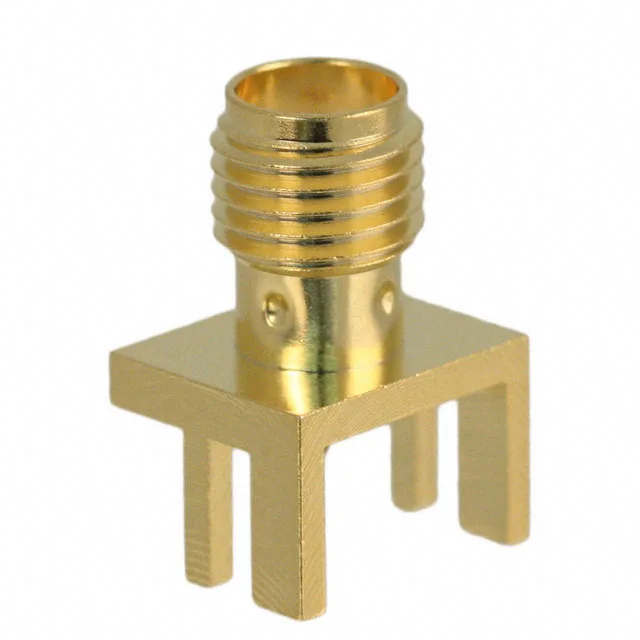

The Amphenol RF 901-10309 is an SMA receptacle with a female socket interface, built for board-edge end launch mounting.

What the 18 GHz and 50 Ohm Ratings Mean for Your RF Path

The 18 GHz frequency ceiling covers L-band through Ku-band, so this connector handles most radar, satellite downlink, and broadband test signals without rolling off.

Board Edge, End Launch — What That Footprint Expects

This is not a bulkhead or panel-mount SMA. The end launch design places the connector at the PCB edge with the signal pin soldered directly to a trace, and the ground legs soldered to the board ground plane. The threaded fastening type means the mating SMA plug tightens with a 1/4-36 nut — no snap-on or push-pull. The shield is terminated by solder, so the ground return path is handled at the board level, not through a separate braid.

100 Mating Cycles — What That Tells You About Duty

It is not built for daily connect-disconnect in a field-service harness — the 901-144 or 901-10745 siblings carry 500-cycle ratings if you need frequent reconnection. The gold plating on both body and center contact does give it corrosion resistance for long-term installed life.

MPN
901-10309
