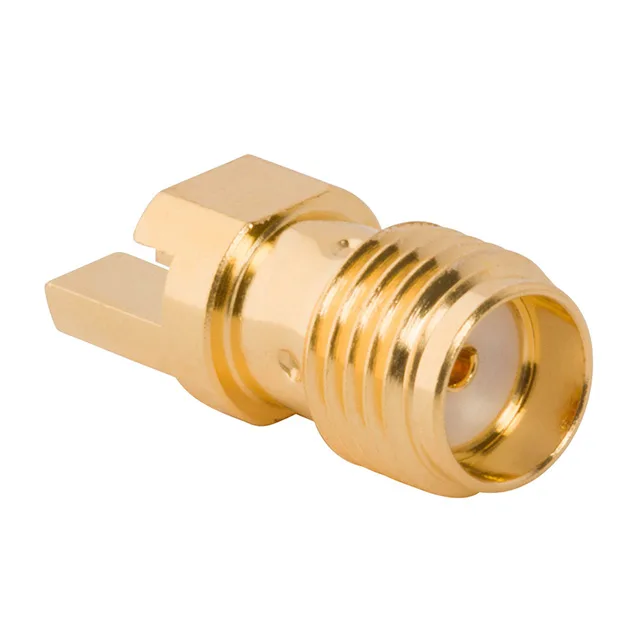

901-10511-3 — Amphenol product photo
Amphenol

Amphenol 901-10511-3 SMA Jack, 26.5 GHz, 50 Ohm

MPN901-10511-3
Active

Amphenol SMA jack, female socket, 50 Ohm, DC to 26.5 GHz, 1 port, flange mount, end launch, threaded coupling, solder shield and contact termination, 500 mating cycles, -65°C to 165°C, Bulk.

$14.1300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10511-3 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating170 V
Frequency - max26.5 GHz
Mounting featureFlange
Operating temperature-65°C~165°C
PackageBulk
Impedance50Ohm
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder

Product details

SMA Jack for 26.5 GHz Signal Paths

The 901-10511-3: The threaded coupling provides vibration-resistant mating typical of SMA interfaces, and the solder shield termination ensures a continuous ground path from the connector body to the PCB or cable shield.

The 901-10511-3 and the 901-10511-2 share identical electrical and mechanical specs: both are SMA jacks, 50 Ohm, 26.5 GHz, 500 mating cycles, 170 V rating, flange mount, solder termination. The only difference is packaging — the 901-10511-3 ships in Bulk, while the 901-10511-2 ships in a different package variant. For a BOM line, the choice comes down to the packaging your assembly line accepts; the RF performance is identical.

500 mating cycles is the standard endurance for a gold-plated SMA connector. For a one-time install in a fixed antenna feed or a module port that sees infrequent reconnection, the cycle life is effectively unlimited — the gold plating resists corrosion during storage.

Frequently asked questions

What is the 901-10511-3 equivalent?

The 901-10511-2 is a functional equivalent with identical electrical and mechanical specs, differing only in packaging. Both are active and sourced to order.
