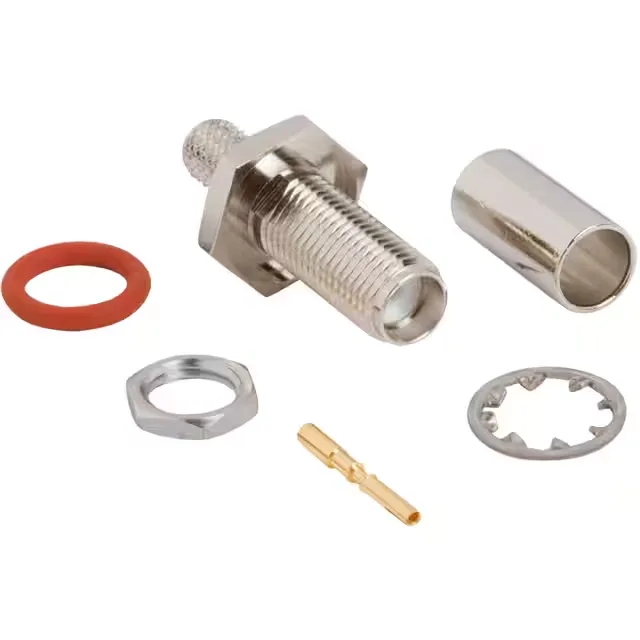

SMA Jack for RG-58, Sealed to IP67
The 901-10746: The threaded coupling gives a positive mechanical lock, and the bulkhead front-side nut mount secures it through a panel cutout. What sets this SMA apart is the IP67 rating — dust-tight and waterproof when mated. That makes it usable in outdoor antenna feeds, washdown environments, or industrial enclosures where a standard SMA would corrode or leak.
Center Contact and Mating Cycles
Gold on the mating surface prevents oxidation in the sealed cavity, and the beryllium copper spring temper keeps contact normal force consistent over repeated matings. For field-service connections that get unmated and re-mated during maintenance, the 500-cycle rating means the connector outlasts the cable assembly in most installations.
This SMA is specced for RG-58 cable group. The shield terminates by soldering to the body, and the center contact is solder-cup style.
