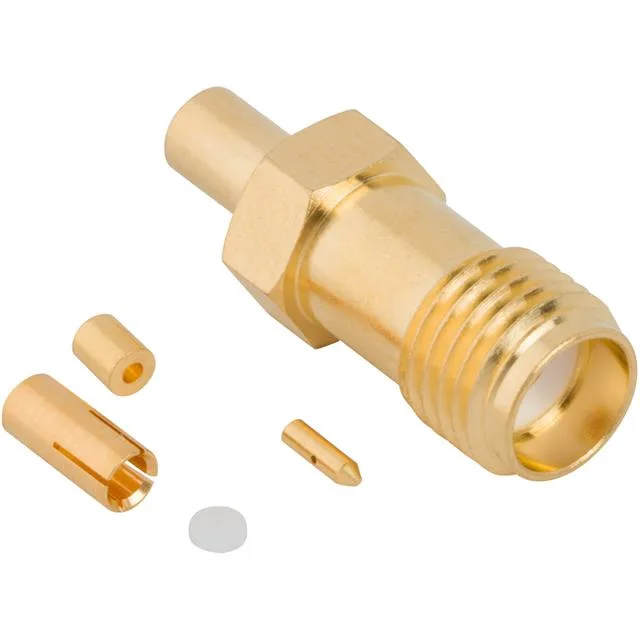

901-10763 — Amphenol product photo
Amphenol

Amphenol RF 901-10763 SMA Jack, 50 Ohm, 6 GHz, Free-Hanging

MPN901-10763
Active

Amphenol RF SMA jack, female socket, 50 Ohm, 6 GHz, 166 V, 500 mating cycles, free-hanging, crimp shield, solder center contact, gold body, for 1.32 mm coaxial cable.

$11.0300Ref. price · indicative, final on quote
901-10763 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10763 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating166 V
Frequency - max6 GHz
Cable group1.32mm Coaxial Cable
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMA Jack for 1.32 mm Coax — 50 Ohm, 6 GHz Ceiling

It carries a 6 GHz maximum frequency rating and a 166 V voltage rating, with a threaded fastening interface that mates with any standard SMA plug. The gold-plated brass body and gold-over-beryllium copper center contact are built for 500 mating cycles — well above the typical 200–300 cycles for a crimp-style SMA. The PTFE dielectric keeps phase stability across the band. This is the connector you specify for a test-lead pigtail, an external antenna whip, or any in-line coax run where a bulkhead-mounted jack isn't needed.

How It Stacks Against the 901-10754 Bulkhead Jack

The 901-10763 is the free-hanging version of the same SMA jack family. The 901-10754 is a bulkhead-mount variant with a front-side nut, rated 335 V instead of 166 V, and accepts 1.13 mm coax instead of 1.32 mm. If your application needs panel feed-through and a higher voltage headroom, the 901-10754 is the right call. If you're terminating a loose cable end without a panel cutout, the 901-10763 saves the hardware and the installation step.

Frequently asked questions

What is the difference between 901-10763 and 901-10754?

The 901-10763 is a free-hanging in-line jack for 1.32 mm coax, rated 166 V. The 901-10754 is a bulkhead-mount jack with a front-side nut, rated 335 V, and accepts 1.13 mm coax. Choose the 901-10754 for panel feed-through; choose the 901-10763 for loose cable termination.

Does 901-10763 require a special tool for assembly?

A standard crimp tool with a hex die sized for the shield ferrule is needed for the shield termination. The center contact is soldered — a standard soldering iron and flux work. No proprietary or factory-only tool is required.
