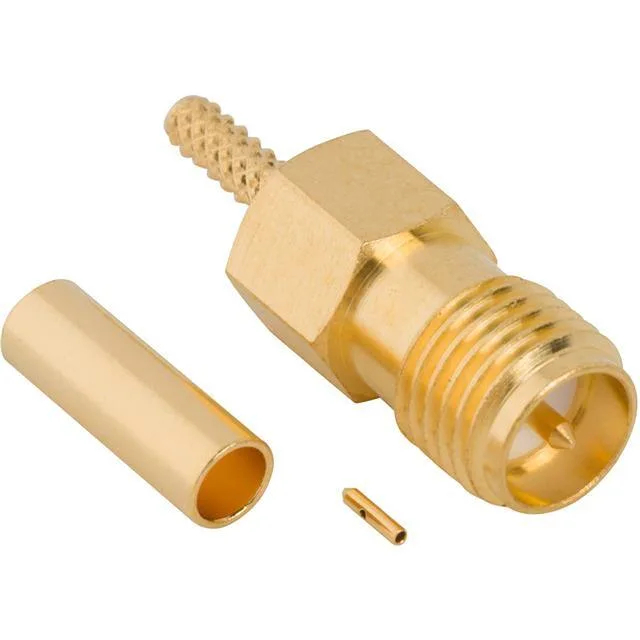

901-10778 — Amphenol product photo

Amphenol RF 901-10778 RP-SMA Jack, 50 Ohm, 6 GHz, RG-178

MPN901-10778
Active

Amphenol RF RP-SMA jack, male pin, 50 Ohm, 6 GHz, RG-178 cable group, threaded fastening, crimp shield termination, solder contact termination, gold body finish.

$13.8900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

901-10778 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating335 V
Frequency - max6 GHz
Cable groupRG-178
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The 6 GHz upper frequency limit covers common bands including 2.4 GHz and 5 GHz ISM, cellular, and GPS L-band; above 6 GHz the VSWR rises beyond the connector's design window. The 335 V voltage rating is adequate for the RF power levels these connectors typically carry — think transmitter outputs up to a few watts — but not for high-voltage pulsed applications. The 500 mating cycles rating tells you this connector can handle repeated field disconnects without the gold-over-nickel centre contact wearing through to the base metal. For a connector that may be swapped during equipment servicing or antenna repositioning, that is a practical durability margin.

Cable Termination and Environmental Reach

Using a different cable group will shift the impedance and may not crimp securely.

Frequently asked questions

What is the impedance of 901-10778?

The 901-10778 has a 50 Ohm nominal impedance, matching the standard for RG-178 cable and most RF system designs.

What cable group is 901-10778 designed for?

The 901-10778 is designed for RG-178 coaxial cable. The crimp shield and solder centre pin are sized to this cable group.
