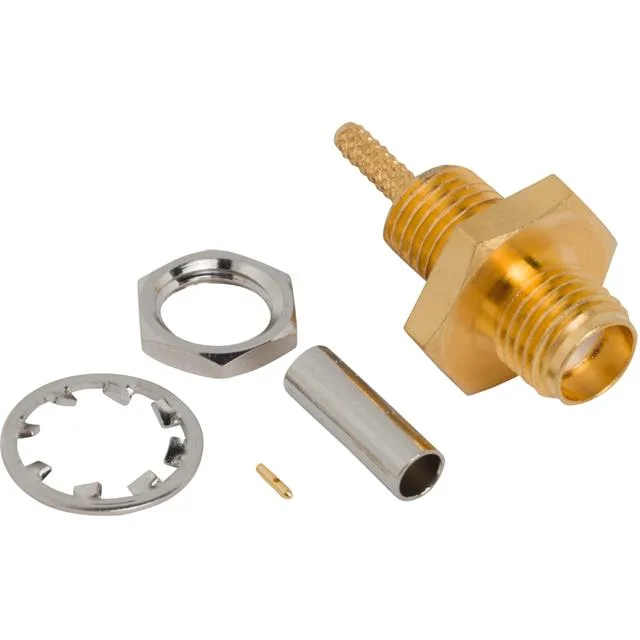

Amphenol RF SMA jack, female socket, 50 Ohm, 7.1 GHz, IP67, bulkhead front-side nut, crimp/solder, gold body, 0.81 mm OD coax.
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 335 V |
| Frequency - max | 7.1 GHz |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | 0.81mm OD Coaxial Cable |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bag |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
The 901-10796: It is a panel-mount bulkhead connector with front-side nut retention, threaded coupling, and a gold-plated brass body. This makes it suitable for outdoor antenna feeds, remote radio heads, and other exposed RF links where a standard unsealed SMA would risk moisture ingress.
This jack is built for 0.81 mm OD coaxial cable.
The 901-10796 is designed for 0.81 mm OD coaxial cable. It is not a generic fit for RG-178 or RG-174 — the crimp and centre contact dimensions are specific to that cable diameter.
Yes, it is a standard SMA jack (female socket) with threaded coupling and 50 Ohm impedance. The IP67 sealing and 7.1 GHz rating are above the typical SMA baseline, but the interface geometry is standard SMA.
