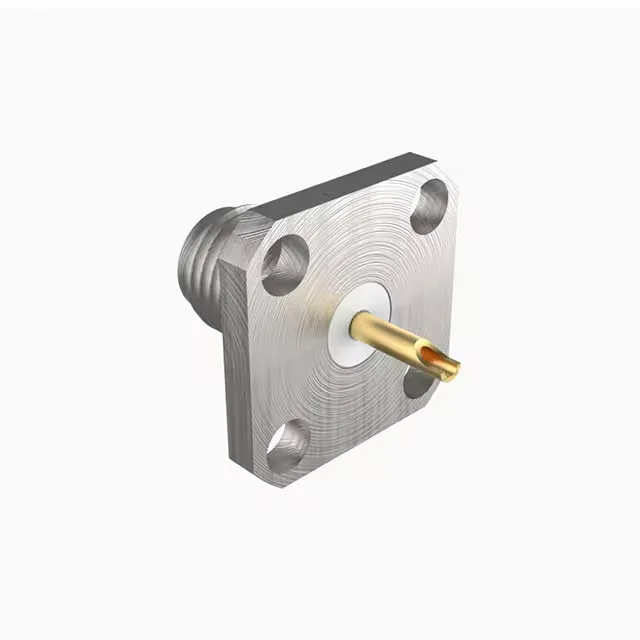

Amphenol RF SMA jack, female socket, 1 port, 50 Ohm impedance, 18 GHz max frequency, panel mount with flange, solder cup termination, stainless steel body, gold-plated beryllium copper center contact, 500 mating cycles, Bulk.
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Frequency - max | 18 GHz |
| Mounting feature | Flange |
| Operating temperature | -65°C~165°C |
| Body material | Stainless Steel |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 50Ohm |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Cup |
| Center contact plating | Gold |
The 901-2PA200000AE: The solder cup termination suits cable assembly where the centre conductor is tinned and soldered directly, common in test harnesses and RF module pigtails.
The 18 GHz max frequency is the upper bound where the connector maintains a 50 Ohm transmission line. The 500 mating cycles is a wear limit on the gold plating.
The 901-2PA200000AE is a 50 Ohm SMA jack rated to 18 GHz maximum frequency.
