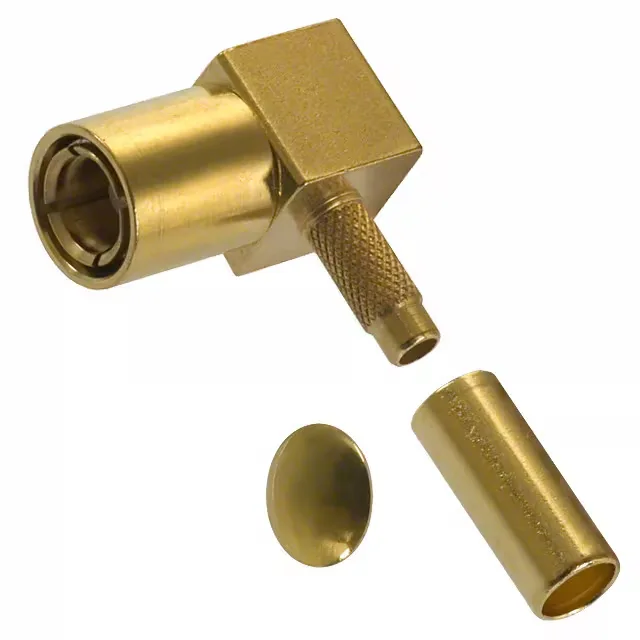

Amphenol RF SMB plug, female socket, 50 Ohm, 4 GHz, right-angle, snap-on, for RG-316 cable, gold body and contacts, 500 mating cycles, kit includes connector, end cap, ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Female Socket |
| Fastening type | Snap-On |
| Frequency - max | 4 GHz |
| Cable group | RG-316 |
| Operating temperature | -65°C~165°C |
| Body material | Zinc Alloy |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.6dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
This plug is pre-configured for RG-316 cable, a common 50 Ohm coax with a solid or stranded center conductor. The kit's three pieces (connector body, end cap, ferrule) cover the full termination hardware; you supply the cable and the crimp tool for the ferrule. The snap-on coupling locks with an audible click and releases with a straight pull — no threads to turn, which speeds up repeated connects and disconnects in test setups.
This plug is designed for RG-316 coaxial cable. The shield is crimped, and the center conductor is soldered.
