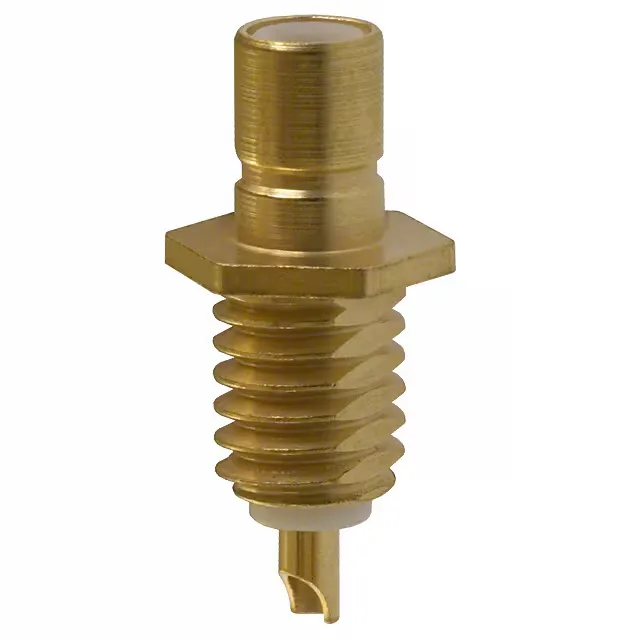

Amphenol RF SMB receptacle, male pin, 50 Ohm, 4 GHz, 1 port, panel mount bulkhead, gold body, solder cup termination, 500 mating cycles, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pin |
| Fastening type | Snap-On |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Impedance | 50Ohm |
| Parameter | Value |
|---|---|
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Cup |
| Center contact plating | Gold |
The 903-406J-51R: It terminates via a solder cup — you tin the centre conductor and the shield braid, then solder each into its cup. The PTFE dielectric and gold-over-brass body keep the signal path stable from DC through 4 GHz, covering ISM bands, cellular, and GPS /L2 without a second thought.
The 4 GHz maximum frequency is the usable top end before insertion loss climbs past 0.3 dB. The 500 mating cycles come from the gold-on-gold contact interface.
50 Ohm nominal, standard for SMB interfaces and common RF systems.
Rated for 500 mating cycles, supported by gold-on-gold contact plating.
Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
