908-43300 — Amphenol product photo
Amphenol

Amphenol RF 908-43300 MMCX Plug Kit, 50 Ohm, 6 GHz

MPN908-43300
Active

Amphenol RF MMCX plug kit, 908-43300, 50 Ohm, 6 GHz, right-angle, snap-on, solder contact, crimp shield, for RG-174/188/316/LMR-100, gold body, bulk.

$14.4900Ref. price · indicative, final on quote
908-43300 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

908-43300 Technical Specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Frequency - max6 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Connector styleMMCX
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

MMCX Plug Kit for RG-174-Class Coax

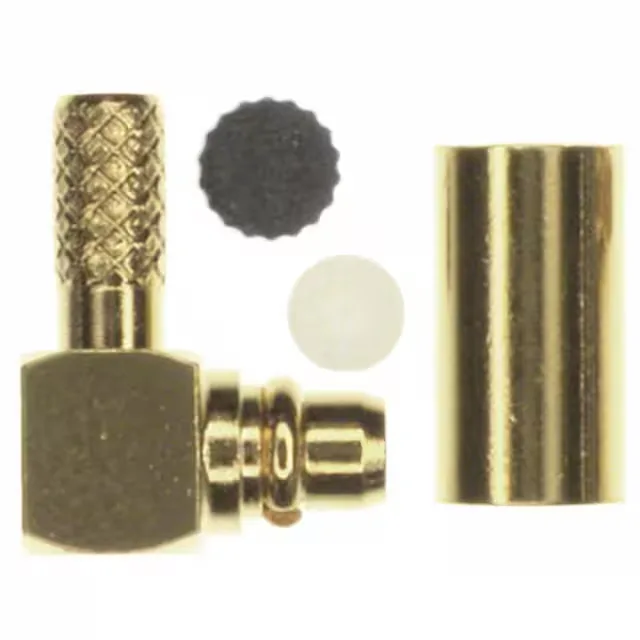

The Amphenol RF 908-43300 is a field-installable MMCX plug kit built for 50 Ohm systems. It comes as three pieces: the plug body, a hex crimp ferrule, and a snap-on end cap. The kit is designed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables — the common small-diameter coax types used in short-run RF interconnects. Rated to 6 GHz, the connector uses a PTFE dielectric and gold-plated brass centre contact with a solder termination for the centre pin and a crimp termination for the shield.

Cable Compatibility and Assembly

The 908-43300 is explicitly listed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174. These cables share a similar dielectric diameter and braid coverage, so the crimp ferrule and centre-pin solder cup are sized to match. The kit includes the end cap that snaps over the crimp area to protect the braid termination and give a finished appearance.

Frequently asked questions

What cables are compatible with the Amphenol RF 908-43300 connector?

The 908-43300 is designed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables.

Does the 908-43300 kit include the end cap and ferrule?

Yes, the kit includes three pieces: the MMCX plug connector, the end cap, and the crimp ferrule.
