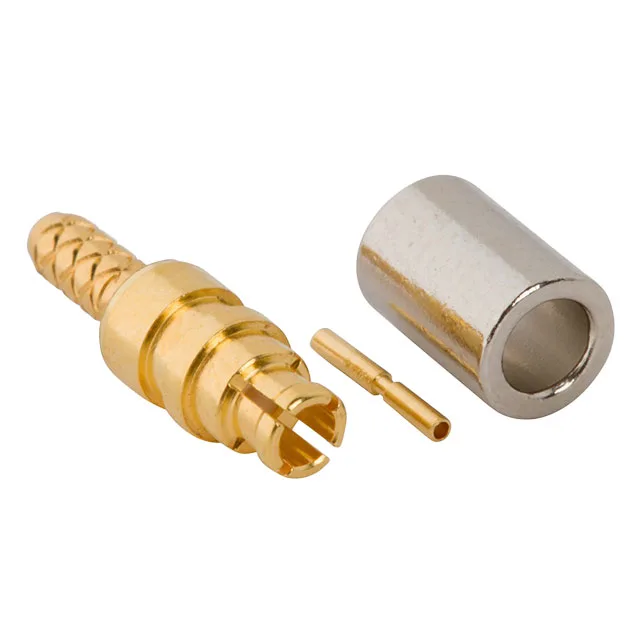

925-129C-51S — Amphenol product photo
Amphenol

Amphenol 925-129C-51S SMPM Plug Kit, 6 GHz, RG-178/196

MPN925-129C-51S
Active

Amphenol SMPM plug kit, 925-129C-51S, 50 Ohm, 6 GHz, snap-on, for RG-178/196, gold-plated beryllium copper body, solder contact, crimp shield.

$13.3500Ref. price · indicative, final on quote
925-129C-51S datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

925-129C-51S Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeSnap-On
Frequency - max6 GHz
Cable groupRG-178, 196
Operating temperature-65°C~165°C
Body materialBeryllium Copper, Brass
Housing colorGold, Silver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishGold; Nickel
Mating cycles100
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMPM Plug Kit for RG-178/196 — Field-Installable Coax Termination

The Amphenol 925-129C-51S is an SMPM plug kit for RG-178 and RG-196 coaxial cable, supplied as three pieces: the connector body, a center contact, and a ferrule. SMPM is the miniature snap-on interface used where board density or panel space limits the use of standard SMP connectors — common in compact RF modules, test equipment, and airborne electronics where every millimetre of height matters. This kit terminates the cable in the field: the center contact solders to the signal conductor, the ferrule crimps over the braid for shield termination, and the snap-on coupling provides a quick mate with the matching SMPM jack.

100 Mating Cycles — Set-and-Forget Duty

For a test-port application needing frequent reconnects, the 925-138J-51P offers 500 cycles with a full-detent retention feature — but that jack uses a solder shield termination and is not a direct cable-plug replacement.

Frequently asked questions

What cable does 925-129C-51S work with?

The 925-129C-51S is designed for RG-178 and RG-196 coaxial cable groups. It is not compatible with RG-316 or other larger-diameter coax without changing the ferrule and contact.
