Amphenol SMPM jack, male pin, 50 Ohm, DC to 40 GHz, panel mount bulkhead, snap-on, gold body, includes connector + contact + insulator, for RG-405 semi-rigid coax.
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Connector type | Jack, Male Pin |
| Fastening type | Snap-On |
| Frequency - max | 40 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-405 (.085\", .086\" Semi Rigid) |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 100 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |

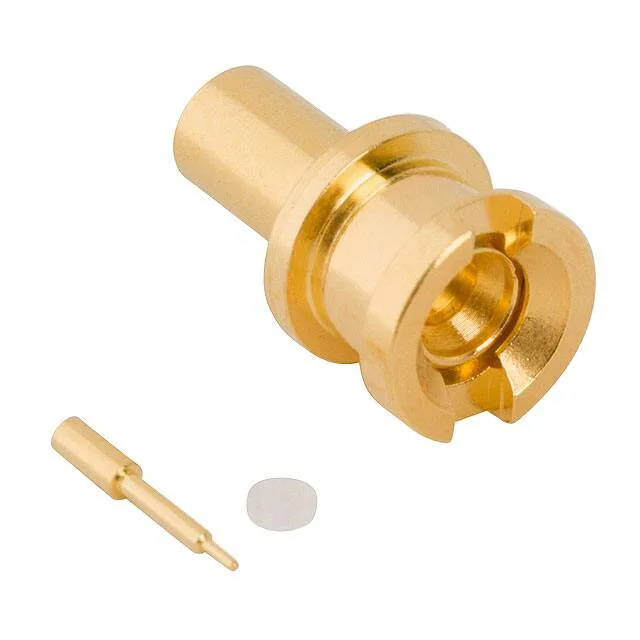

This is a field-installable kit, not a bare connector. The package includes three pieces: one SMPM jack body, one gold-plated beryllium copper centre contact, and one insulator made from polyetherimide (PEI) and polytetrafluoroethylene (PTFE). The contact termination and shield termination are both solder — you tin the RG-405 centre conductor and the outer braid, then solder the contact and the shield cup.
This jack is designed for RG-405 (.085" /.086" semi-rigid) coaxial cable. The centre contact and insulator are sized for that cable group.
You solder the contact and shield termination yourself.
