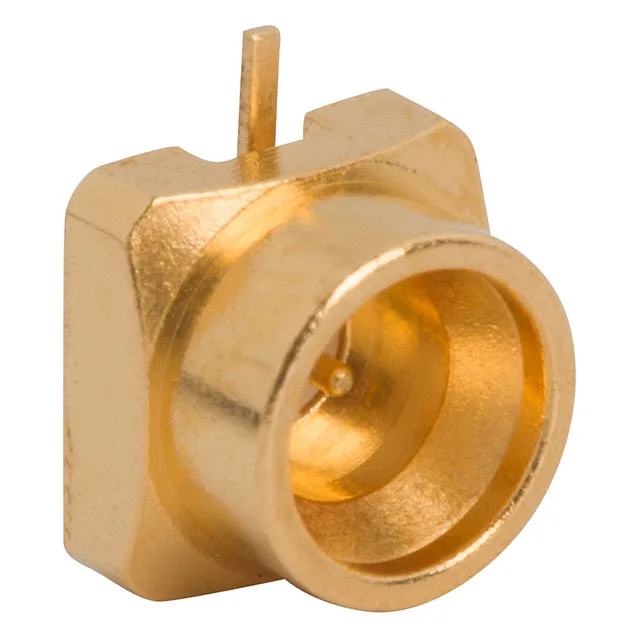

Amphenol 925-197J-51PT

Amphenol RF 925-197J-51PT SMPM Jack, 50 Ohm, 26.5 GHz

MPN 925-197J-51PT
Active

Amphenol RF SMPM jack, male pin, 50 Ohm, 26.5 GHz, surface mount, snap-on, gold body, 1 port, smooth bore.

$6.1300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

925-197J-51PT specifications
ParameterValue
MountingSurface Mount
Connector typeJack, Male Pin
Fastening typeSnap-On
Frequency - max26.5 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialBrass
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSmooth Bore
Impedance50Ohm
Body finishGold
Mating cycles100
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 925-197J-51PT: SMPM is the miniature blind-mate interface for dense RF boards where the full SMP's 40 GHz reach is overkill but the 26.5 GHz ceiling here still covers Ku-band and most microwave links.

The 925-144J-51P is the same SMPM jack, same 50 Ohm impedance and gold body, but packaged in Bulk rather than Tape & Reel or Cut Tape. The functional specs — 26.5 GHz frequency ceiling, 100 mating cycles, snap-on fastening — are identical. The choice is a packaging preference: the 925-197J-51PT suits automated pick-and-place lines; the 925-144J-51P works for hand-assembly or low-volume builds where reel feed is unnecessary.

What the 26.5 GHz and 100-Cycle Ratings Mean for Your RF Path

The 26.5 GHz maximum frequency means this jack supports signals up through the Ku-band and into the lower K-band, covering most satellite communications, point-to-point microwave, and test equipment applications.
