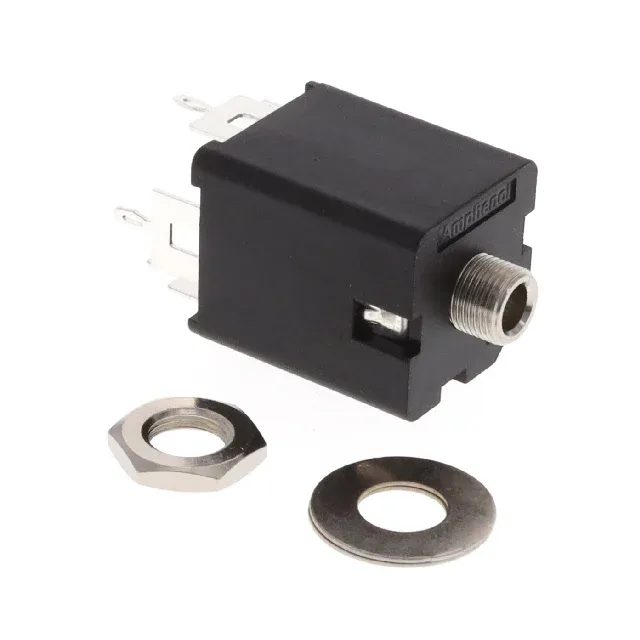

Amphenol ACJS-MV35-5
MPNACJS-MV35-5
Active
3.5MM STEREO VERT METAL NUT SCHE
$1.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesXLRSeries™ AC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XLRSeries™ AC |
| Mounting | Panel Mount, Through Hole |
| Connector type | Phone Jack |
| Voltage - rated | 34V |
| Current rating | 10 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver, Black |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Contact material - plating | Tin |
| Gender | Female |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Press-Fit, Solder |
| Connector size | M6x0.5 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Panel hole size | 0.236\" (5.99mm) |
| Internal switch | Two Switches |
| Number of positions (Contacts) | 3 Conductors, 5 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
