Standard DB-25 Receptacle with Full Mounting Hardware

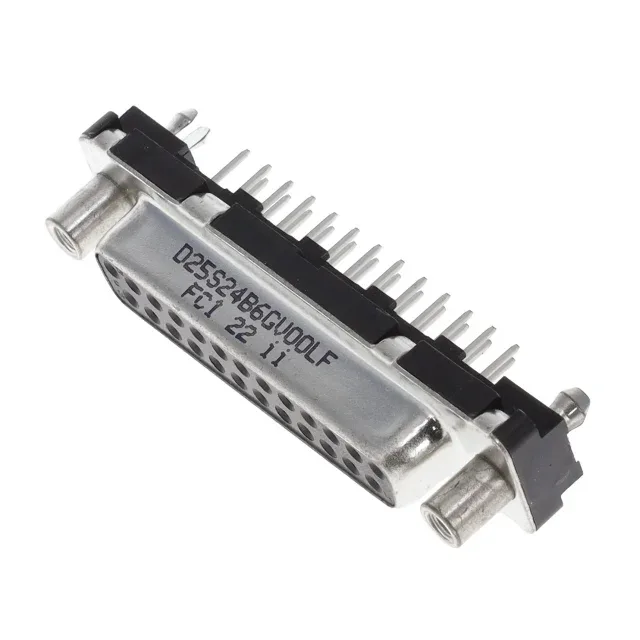

The Amphenol FCI D25S24B6GV00LF is a 25-position D-Sub receptacle in the Delta D series, occupying the standard DB-25 shell size (layout 3). The 25 contacts are arranged in 2 rows, giving you the familiar DB-25 footprint that matches legacy serial, parallel, and industrial I/O panels. The mating-side female screwlock (4-40) accepts standard jackscrews from the mating plug, securing the pair against accidental disconnection in panel-mount or cable-to-board applications.
Sizing the Mount and the Mating Half
The DB-25 shell size (3) dictates the panel cutout and the mating plug style — any standard DB-25 male plug with 4-40 threaded inserts will mate. The female screwlock on the mating side (not the housing/shell style) means the jackscrews are captive in the receptacle, not in the plug. If your assembly prefers the jackscrews on the cable side, the sibling D25S24A6GX00LF carries a housing/shell (4-40) flange instead, leaving the receptacle side unthreaded. The contact finish thickness also differs: the B6G variant carries 30.0 µin gold, while the B4GV00LF carries flash gold — the 30.0 µin grade is the better choice for applications requiring more than a few dozen mating cycles or exposure to humidity.
