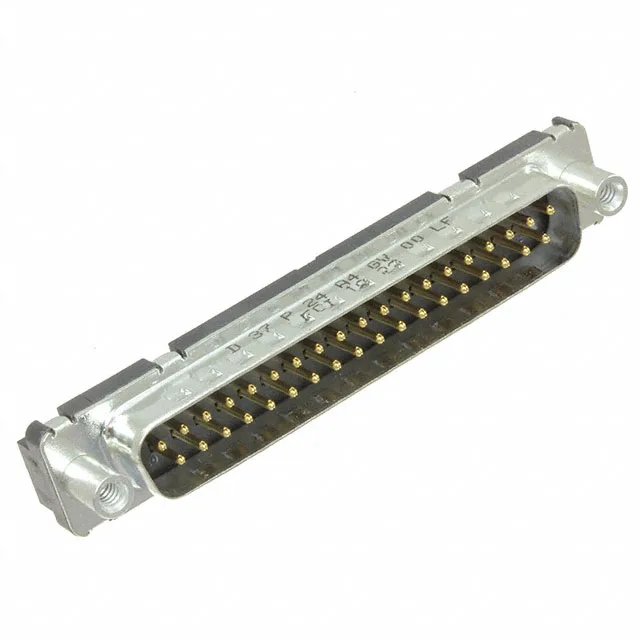

D37P24A4GV00LF — Amphenol product photo
Amphenol

Amphenol FCI D37P24A4GV00LF Delta D D-Sub Plug, 37 Pos, 5A

MPND37P24A4GV00LF
Active

Amphenol FCI Delta D series D-Sub plug, 37 positions, 2 rows, vertical through-hole solder termination, 5A per contact, 300V, gold flash contacts, board lock, grounding indents.

$4.9300Ref. price · indicative, final on quote
D37P24A4GV00LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D37P24A4GV00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions37
Contact finish thicknessFlash

Product details

37-Pin D-Sub Plug with Board Locks and Grounding Indents

The Amphenol FCI D37P24A4GV00LF is a 37-position D-Sub plug from the Delta D series, designed for vertical through-hole soldering onto a PCB. It carries male pins in two rows, with the shell size 4 (DC, C) layout that matches the standard 37-pin D-Sub footprint.

The 300V voltage rating provides adequate headroom for signal-level circuits and low-power control lines in industrial equipment.

Board Locks and Grounding Indents — Why They Matter

Without them, the shear force from a mated cable can open the solder joints over time. The steel shell with tin-nickel plating provides the shielding path.

Frequently asked questions

Does D37P24A4GV00LF have board locks?

Yes, this plug includes board locks and grounding indents. The board locks secure it to the PCB during soldering and resist vibration; the grounding indents bleed shield current before it reaches the signal pins.
