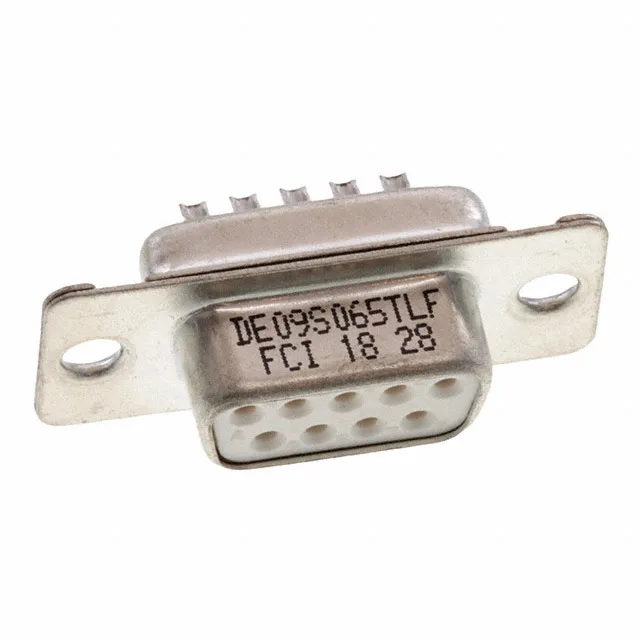

Amphenol FCI DE09S065TLF D-Sub Receptacle, 9-Pos, Solder Cup

MPN DE09S065TLF
Active

Amphenol FCI D-sub receptacle, Series D, DE09S065TLF, 9 positions, 2 rows, female sockets, solder cup termination, free-hanging, gold GXT™ contact finish, 5 A per contact, 300 V.

$1.4000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DE09S065TLF key specifications
ParameterValue
SeriesD
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

DE09S065TLF additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder Cup
Contact finishGold, GXT™
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

It terminates via solder cups to discrete wires, then mates with a male D-sub header (panel-mount or right-angle PCB type) to carry signal-level DC and low-speed data in industrial controls, serial communication ports, and instrumentation. The shell size is 1 (DE, E), meaning the mating face follows the standard DE-9 footprint: two rows of contacts, with the upper row offset from the lower. The unthreaded flange lets you secure the connector to a mating shell with standard 4-40 jackscrews or slide locks.

Tin-plated steel shell provides RFI/EMI shielding when mated with a grounded male shell.

Termination and Mating Details

Solder-cup termination — each cup accepts 20-28 AWG stranded wire; strip, tin, and solder into the cup. No crimp tool needed, which makes this a field-repairable connector for cable assemblies. The flange is unthreaded — use a standard 4-40 screw or slide-lock bracket to secure the pair. The pinout follows the standard DE-9 female layout: pin 1 is the upper-left position when looking at the mating face, with the row offset toward the bottom.
