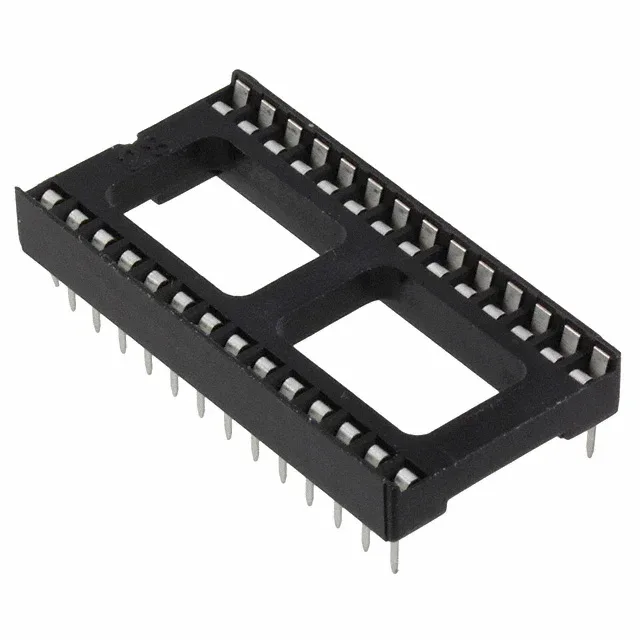

DILB28P-223TLF DIP Socket 28-Pin 0.6" Row Spacing

MPNDILB28P-223TLF
Active

Amphenol ICC (FCI) DILB28P-223TLF, 28-pin DIP socket, 0.6" (15.24mm) row spacing, 0.100" (2.54mm) pitch, tin-plated contacts, open frame, through-hole termination, UL94 V-0 housing.

$0.9600Ref. price · indicative, final on quote
DILB28P-223TLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DILB28P-223TLF Technical Specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Mounting typeThrough Hole
Current rating1 A
Operating temperature-55°C~105°C
Housing materialPolyamide (PA), Nylon
Contact material - postCopper Alloy
Contact material - matingCopper Alloy
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance30mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.124\" (3.15mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)
Number of positions or pins28 (2 x 14)

Product details

28-Pin DIP Socket with 0.6" Row Spacing

The DILB28P-223TLF is a 28-position (2x14) DIP socket from Amphenol ICC (FCI) with a 0.6" (15.24mm) row spacing and 0.100" (2.54mm) pitch between pins — the standard footprint for 28-pin DIP ICs. The open-frame design lets air circulate under the IC, aiding heat dissipation from the device and making solder joint inspection straightforward after wave or hand soldering.

Through-Hole Termination and Housing

Through-hole termination with a 0.124" (3.15mm) post length — the post length is enough for standard 1.6mm PCBs with good solder fillet formation on the bottom side.

Frequently asked questions

What is the contact resistance of DILB28P-223TLF?

The contact resistance is rated at 30mOhm, typical for tin-plated DIP sockets with copper alloy contacts.

What is the difference between open frame and closed frame DIP sockets?

An open-frame socket (like this DILB28P-223TLF) has a cut-out under the IC, allowing airflow for heat dissipation and visual inspection of solder joints, while a closed-frame socket has a solid base that provides more mechanical support but traps heat and blocks inspection.

Where can I buy DILB28P-223TLF?

Availability and current pricing confirmed at quote time.
