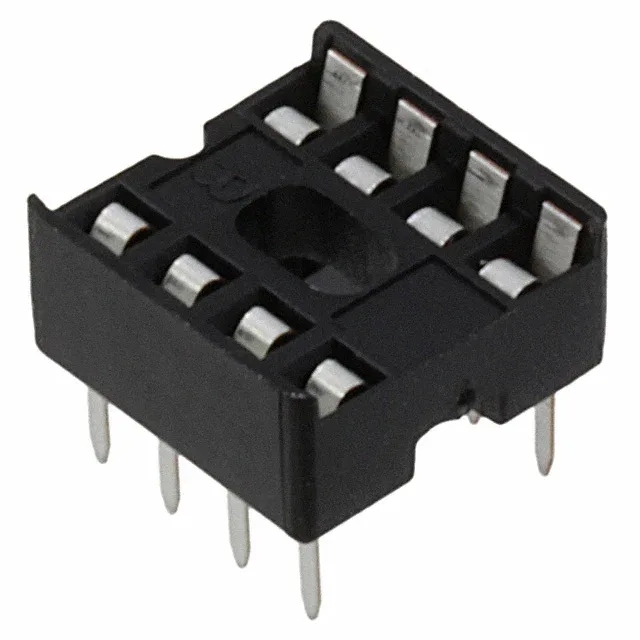

Amphenol ICC (FCI) DILB8P-223TLF, 8 (2 x 4) position DIP socket, 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, through-hole solder termination, tin-plated contacts, 1 A rating, open-frame PA housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyamide (PA), Nylon |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.124\" (3.15mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 8 (2 x 4) |
The DILB8P-223TLF: The termination post length is 0.124" (3.15 mm), designed for through-hole soldering into a standard PCB; the solder tail provides a reliable mechanical and electrical connection after wave or hand soldering.
Yes, the DILB8P-223TLF is RoHS compliant per the manufacturer listing.
