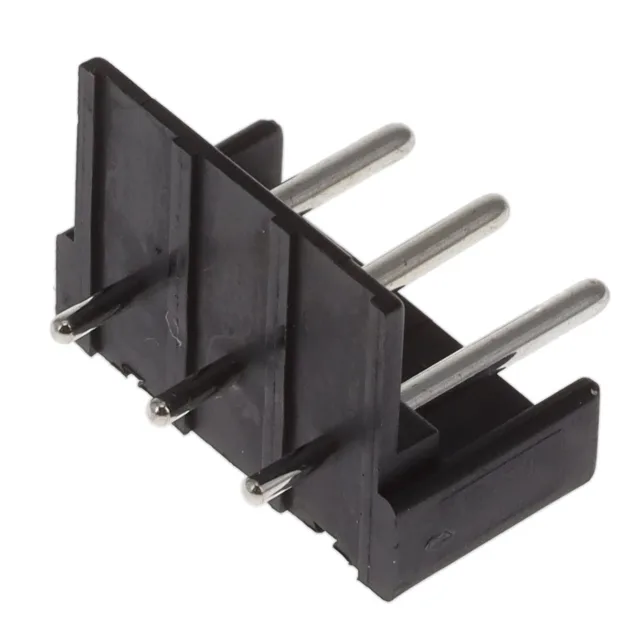

Header, Male Pins, Partial Shroud, EX series, order code EX0300010000G, 3 positions, 1 row, 0.197" (5.00mm) pitch, 10 A, 300 V, through hole, vertical, solder termination, tin mating finish.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Partial Shroud |
| Series | EX |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Thermoplastic |
| Insulation height | 0.374\" (9.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.132\" (3.35mm) |
| Positions | 3 |
| Contact mating finish | Tin |
The EX0300010000G is the 3-circuit member of the EX series of vertical through-hole headers with partial shrouding. Tin-plated brass contacts rated 10 A at 300 V, 0.197" (5.00 mm) pitch, solder termination.
Thermoplastic housing rated UL94 V-0, operating temperature -40°C to 115°C. RoHS3 compliant.
