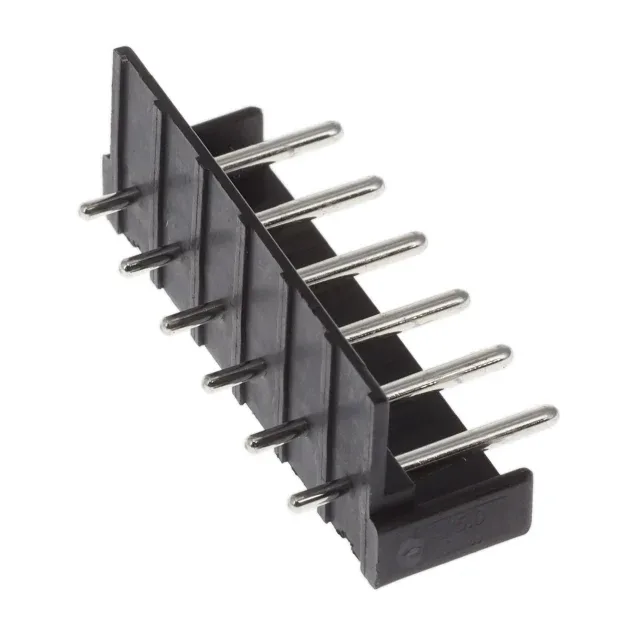

EX0600010000G — Amphenol product photo
Amphenol

EX0600010000G Header, 6 Pos, 5.00mm, Tin, Through Hole

MPNEX0600010000G
Active

Header, Male Pins, Partial Shroud, EX series, order code EX0600010000G, 6 positions, 0.197" (5.00mm) pitch, 10 A, 300 V, tin mating finish, through hole, vertical, solder termination.

$1.0900Ref. price · indicative, final on quote
EX0600010000G datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

EX0600010000G Technical Specifications
ParameterValue
TypeHeader, Male Pins, Partial Shroud
SeriesEX
Mounting typeThrough Hole
Voltage - UL300 V
Current - UL10 A
Operating temperature-40°C ~ 115°C
ColorBlack
Contact materialBrass
Housing materialThermoplastic
Insulation height0.374\" (9.50mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.132\" (3.35mm)
Positions6
Contact mating finishTin

Product details

6-position 5.00 mm pitch header

The EX0600010000G is the 6-circuit member of the EX series of vertical, through-hole headers with partial shrouding. Rated 10 A at 300 V with tin-plated mating contacts, the header operates from -40°C to 115°C and carries a UL94 V-0 thermoplastic housing.

Partial shroud and tin plating

The partial shroud guides mating while leaving the solder tails exposed for inspection; the tin mating finish suits moderate-cycle-count applications where cost per position is a factor.

Frequently asked questions

What compliance documentation does the manufacturer provide for EX0600010000G?

The part is RoHS3 Compliant; the housing material is rated UL94 V-0.
