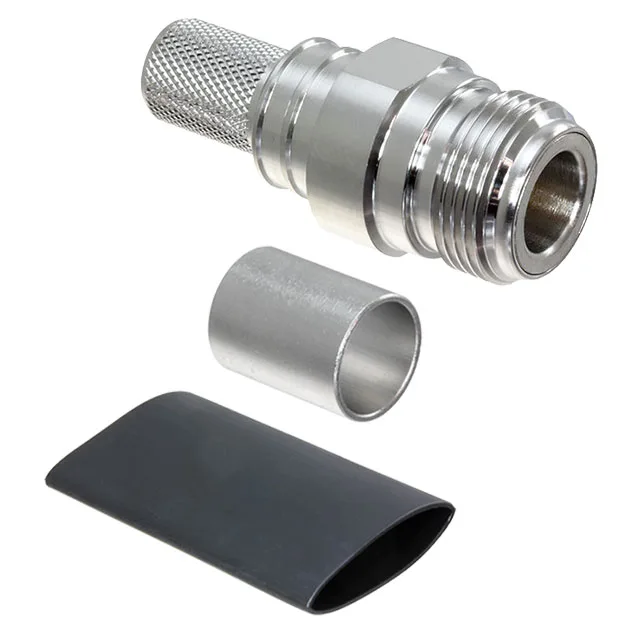

Amphenol EZ-400-NF-X
MPNEZ-400-NF-X
Active
$18.8100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EZ |
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 1500 V |
| Frequency - max | 6 GHz |
| Cable group | LMR-400 |
| Operating temperature | -55°C ~ 155°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Bronze |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Insertion loss | 0.1dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Push On |
| Center contact plating | Gold |
