0.50mm Pitch, 40-Position ZIF — Signal-Density Fit
Housing is LCP rated UL94 V-0, actuator is halogen-free PA9T nylon.
40 vs 41 vs 50 Positions — Position-Count Choice
The F31L-1A7H1-11040 carries 40 positions.
RoHS compliant per.

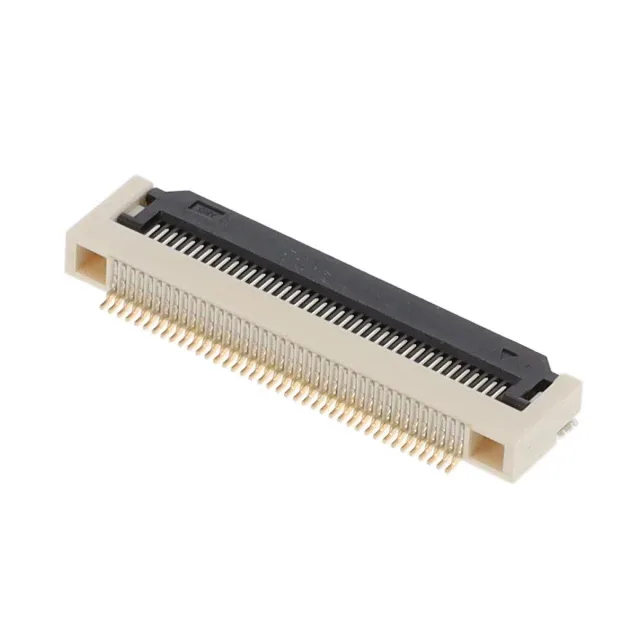

F31L-1A7H1-11040 FFC/FPC Connector 0.50mm Pitch 40 Pos ZIF
MPNF31L-1A7H1-11040
Active
Amphenol ICC (FCI) Aorora F31L series, FFC/FPC connector, 0.020" (0.50mm) pitch, 40 positions, 0.5A, gold contacts, ZIF slide lock, right-angle SMT, UL94 V-0 LCP housing.
$0.9200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAorora F31L
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Aorora F31L |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C~105°C |
| Housing color | Natural |
| Actuator color | Gray |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA9T), Nylon 9T, Halogen Free |
| Height above board | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 30 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 40 |
| Contact finish thickness | 1.97µin (0.050µm) |
Product details
Frequently asked questions
Is F31L-1A7H1-11040 RoHS compliant?
Yes, RoHS compliant per the manufacturer listing.
What is the closest functional equivalent to F31L-1A7H1-11040?
The F31L-1A7H1-11041 (41 positions) and F31L-1A7H1-11050 (50 positions) share the same pitch, current rating, gold plating, and ZIF slide lock. The only difference is position count — select the one matching your FPC circuit count.
What is the mating cycle rating of F31L-1A7H1-11040?
30 mating cycles — suited for one-time assembly or infrequent rework, not repeated field service.
How can I order F31L-1A7H1-11040 or check stock?
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part.
