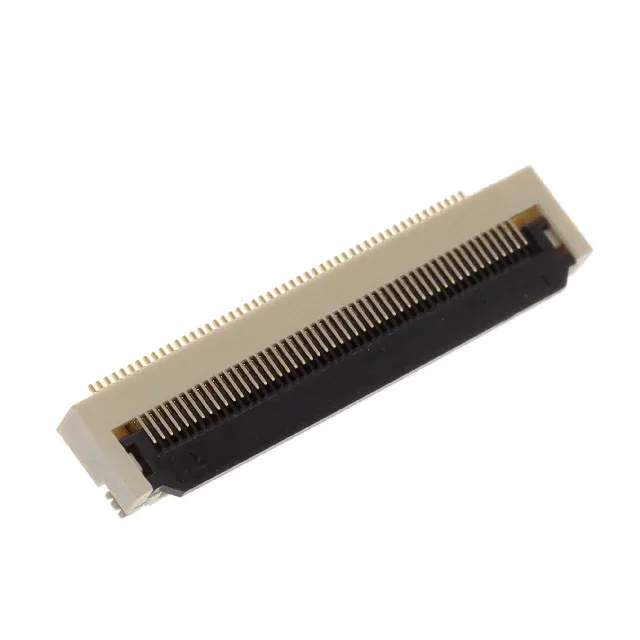

F31L-1A7H1-11050 — Amphenol product photo
Amphenol

F31L-1A7H1-11050 Amphenol ICC FFC/FPC Connector

MPNF31L-1A7H1-11050
Active

Amphenol ICC (FCI) Aorora F31L FFC/FPC connector, 50 positions, 0.50mm pitch, right-angle SMT, ZIF slide lock, gold-plated contacts, 0.5A, 50V, UL94 V-0.

$1.1600Ref. price · indicative, final on quote
F31L-1A7H1-11050 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

F31L-1A7H1-11050 Technical Specifications
ParameterValue
SeriesAorora F31L
Mounting typeSurface Mount, Right Angle
Cable end typeNotched
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C~105°C
Housing colorNatural
Actuator colorGray
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialPolyamide (PA9T), Nylon 9T, Halogen Free
Height above board0.100\" (2.54mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles30
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.33mm
Positions50
Contact finish thickness1.97µin (0.050µm)

Product details

Right-Angle SMT ZIF with 50 Circuits

The F31L-1A7H1-11050: This 50-position FFC/FPC connector from the Aorora F31L series uses a 0.50mm pitch and a right-angle SMT footprint, which sets the board-edge routing density and the z-height budget at 2.54mm above the board. Gold-plated phosphor bronze contacts, with a plating thickness of 1.97µin (0.050µm) on the mating face, are rated for 30 mating cycles — enough for a single assembly or occasional rework, but not repeated field disconnect duty.

The narrow 0.50mm pitch limits per-contact current more than the contact beam itself.

No stock-holding claim — we source per RFQ through independent distribution.

The F31L-1A7H1 base number also covers 40-position (F31L-1A7H1-11040) and 41-position (F31L-1A7H1-11041) variants, as well as a 60-position version (F31L-1A7H1-11060). The 60-position sibling is the closest functional alternative if you need extra circuits, but the footprint length changes — confirm the PCB keep-out before substituting.

Frequently asked questions

Is F31L-1A7H1-11050 compatible with 0.5mm pitch FFC cables?

Yes — the connector has a 0.50mm pitch and accepts a 0.33mm-thick notched FFC or FPC cable. The ZIF slide lock secures the cable without insertion force. Confirm the cable end type is notched and the thickness matches 0.33mm for proper contact wipe.
