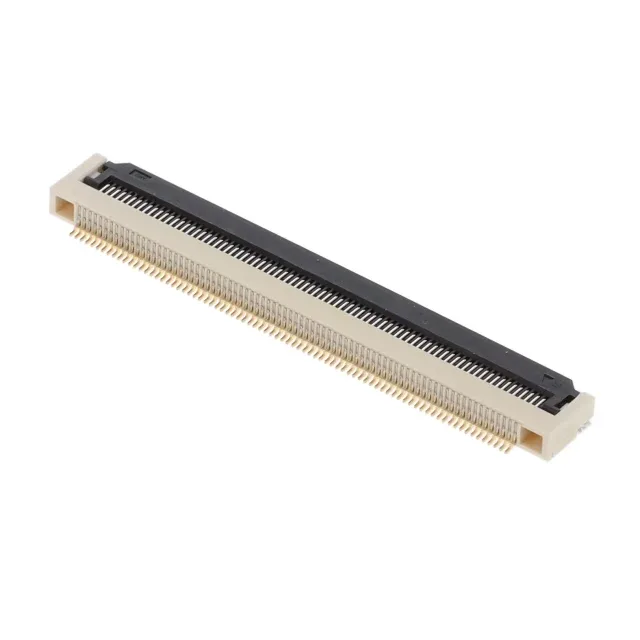

F31L-1A7H1-11080 — Amphenol product photo
Amphenol

F31L-1A7H1-11080 Amphenol ICC FFC/FPC Connector

MPNF31L-1A7H1-11080
Active

Amphenol ICC (FCI) Aorora F31L series, FFC/FPC connector, 80 positions, 0.020" (0.50mm) pitch, 0.5A per contact, 50V, gold-plated bottom contacts, ZIF slide lock, right-angle SMT, natural LCP housing, UL94 V-0.

$1.7200Ref. price · indicative, final on quote
F31L-1A7H1-11080 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

F31L-1A7H1-11080 Technical Specifications
ParameterValue
SeriesAorora F31L
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C~105°C
Housing colorNatural
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialPolyamide (PA9T), Nylon 9T, Halogen Free
Height above board0.100\" (2.54mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles30
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions80
Contact finish thickness1.97µin (0.050µm)

Product details

80-Position FFC/FPC Connector for Dense Signal Routing

The F31L-1A7H1-11080 is an 80-position FFC/FPC connector from Amphenol ICC's Aorora F31L series, built for high-density signal interconnect on a 0.50mm pitch. It carries 0.5A per contact at 50V, which keeps it squarely in the signal domain — not a power part. The ZIF slide-lock actuator accepts 0.30mm or 0.33mm thick FFC/FPC with straight or tapered ends, and the 30-cycle mating rating means this connector is designed for one-time assembly or infrequent field disconnect — not daily reconnection. Gold-plated phosphor bronze contacts (1.97 µinch gold) resist corrosion on the signal interface, and the LCP housing handles lead-free reflow temperatures without distortion.

It is RoHS compliant.

Frequently asked questions

What cable thickness does F31L-1A7H1-11080 accept?

It accepts FFC or FPC cables with a thickness of 0.30mm or 0.33mm, and the cable end can be straight or tapered.

Is F31L-1A7H1-11080 RoHS compliant?

Yes, it is RoHS compliant.
