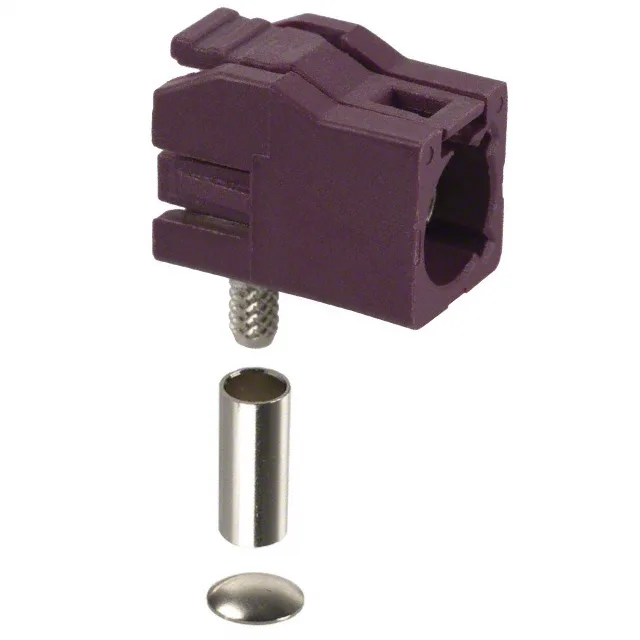

FA1-NDRJ-C01-0 — Amphenol product photo
Amphenol

Amphenol RF FA1-NDRJ-C01-0, SMB Fakra Jack, 50 Ohm, 6 GHz

MPNFA1-NDRJ-C01-0
Active

Amphenol RF SMB, Fakra jack, female socket, 50 Ohm impedance, 6 GHz max frequency, right-angle, free-hanging, latch lock, crimp shield termination, solder contact termination, nickel body finish, gold centre contact plating, bulk package.

$4.8000Ref. price · indicative, final on quote
FA1-NDRJ-C01-0 datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FA1-NDRJ-C01-0 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeJack, Female Socket
Fastening typeLatch Lock
Frequency - max6 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-40°C~100°C
Body materialBrass
Housing colorViolet, Claret
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesCode D
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles100
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The Amphenol RF FA1-NDRJ-C01-0 is a 50 Ohm SMB/Fakra jack (female socket) in a right-angle, free-hanging body with a latch-lock fastening system. It's built for the Fakra interface standard used in automotive RF applications — telematics, satellite radio, GPS antennas, and cellular modules where the connector must survive vibration without backing off.

This jack accepts RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups. The shield is crimp-terminated; the centre contact is soldered.

Frequently asked questions

What is the impedance of FA1-NDRJ-C01-0?

The FA1-NDRJ-C01-0 is a 50 Ohm SMB/Fakra jack, specified for 50 Ohm systems.

What cable groups are compatible with FA1-NDRJ-C01-0?

This jack accepts RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups. The shield is crimp-terminated and the centre contact is soldered.
