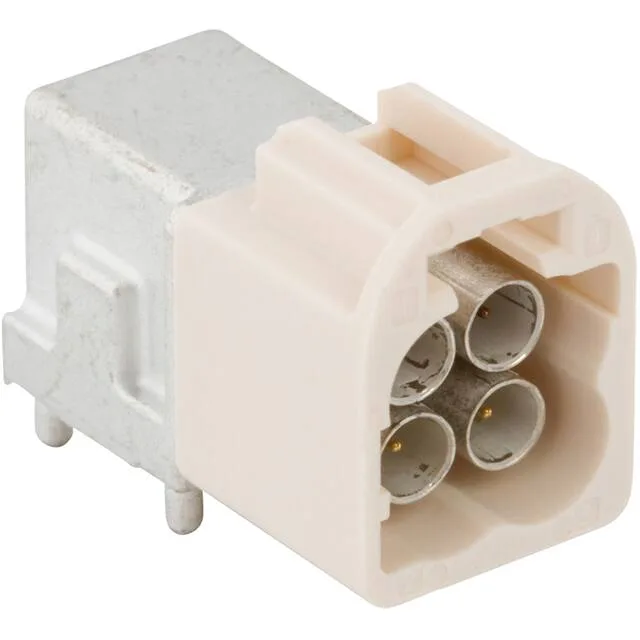

Amphenol RF AUTOMATE™ Series, Fakra plug, male pin, FM4-NBRP-PCB-1, 50 Ohm, 9 GHz, 1 port, through-hole right-angle, solder termination, gold center contact, Code B, latch lock, Tape & Reel.
| Parameter | Value |
|---|---|
| Mounting type | Through Hole, Right Angle |
| Connector type | Miniature Coaxial, Fakra, Quadraxial |
| Fastening type | Latch Lock |
| Frequency - max | 9 GHz |
| Operating temperature | -40°C~105°C |
| Body material | Brass, Zinc Alloy |
| Housing color | Cream |
| Dielectric material | Liquid Crystal Polymer (LCP) |
| Center contact material | Copper Alloy |
| Package | Tape & Reel (TR) |
| Features | Code B |
| Impedance | 50Ohm |
| Body finish | Tin |
| Mating cycles | 25 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The Amphenol RF FM4-NBRP-PCB-1 is a single-port Fakra plug, male pin, from the AUTOMATE™ series. The center contact is gold-plated over copper alloy, giving stable contact resistance across the rated 25 mating cycles. Code B keying prevents cross-mating with other Fakra codes in a multi-connector harness.
Supplied in Tape & Reel (TR) packaging for automated pick-and-place assembly.
Submit a request for current pricing and lead time — availability is confirmed at quote time.
The FM4-NBRP-PCB-1 is a 50 Ohm plug rated to 9 GHz maximum frequency, making it suitable for LTE, 5G sub-6 GHz, and GNSS applications.
