Amphenol RF FM4-NZRP-PCB-1 Fakra Plug, 50 Ohm, 9 GHz

MPNFM4-NZRP-PCB-1
Active

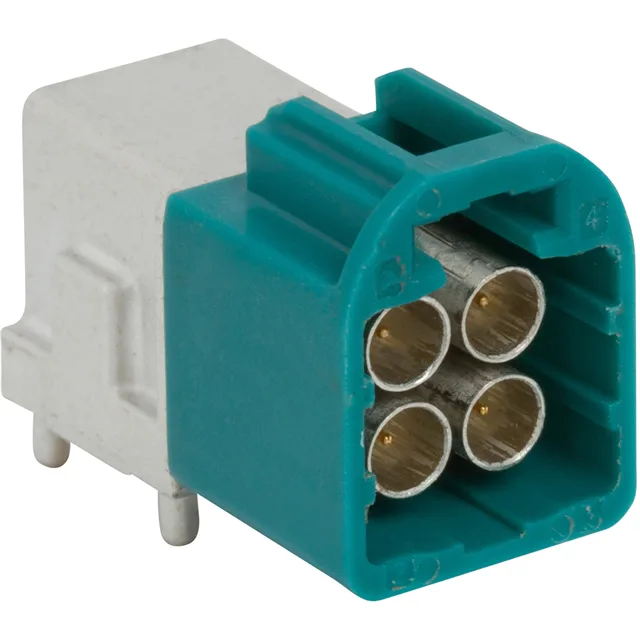

Amphenol RF AUTOMATE™ Fakra Quadraxial plug, FM4-NZRP-PCB-1, 50 Ohm, 9 GHz, Code Z keying, right-angle through-hole, latch lock, gold center contact, 25 mating cycles.

$8.1700Ref. price · indicative, final on quote
FM4-NZRP-PCB-1 datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FM4-NZRP-PCB-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeMiniature Coaxial, Fakra, Quadraxial
Fastening typeLatch Lock
Frequency - max9 GHz
Operating temperature-40°C~105°C
Body materialBrass, Zinc Alloy
Housing colorBlue, Water
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialCopper Alloy
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesCode Z
Impedance50Ohm
Body finishTin
Mating cycles25
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Fakra Quadraxial Plug, Code Z, Right-Angle PCB Mount

The FM4-NZRP-PCB-1: Code Z keying prevents cross-mating with other Fakra code variants in the same harness bundle — a standard practice in automotive antenna and infotainment systems where multiple coax runs share a connector cluster. The housing is brass and zinc alloy with a tin body finish, overmolded in a blue/water-colored LCP dielectric.

Code Z Keying and Mating Half

Code Z is one of several Fakra keying codes (A, B, C, D, E, F, G, H, I, K, Z). The FM4-NZRP-PCB-1 mates with the corresponding Code Z Fakra receptacle (female jack) — the keying geometry physically prevents inserting a Code Z plug into a Code A or Code B jack. This is critical in multi-coax harnesses where each signal path must land on the correct port.

Frequently asked questions

What is the mating connector for FM4-NZRP-PCB-1?

The FM4-NZRP-PCB-1 mates with a Code Z Fakra receptacle (female jack) of the same AUTOMATE™ series. The keying code must match — a Code Z plug will not mate with a Code A or Code B jack.
