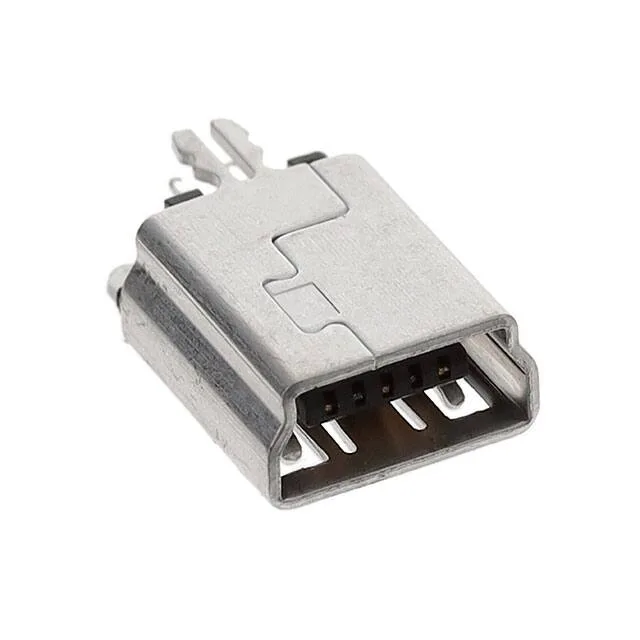

GMSB0512132CEU — Amphenol product photo
Amphenol

Amphenol ICC GMSB0512132CEU USB mini B Receptacle, 5-Pin

MPNGMSB0512132CEU
Active

Amphenol ICC GMSB051 series USB - mini B receptacle, order code GMSB0512132CEU, 5 contacts, 1 port, vertical through-hole, solder termination, gold-plated contacts, 30 VDC, 1.5 A, shielded.

$0.9500Ref. price · indicative, final on quote
GMSB0512132CEU datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

GMSB0512132CEU Technical Specifications
ParameterValue
SeriesGMSB051
Mounting typeThrough Hole
Connector typeUSB - mini B
Voltage - rated30VDC
Current rating1.5A
Positions5
Mounting featureVertical
Operating temperature-40°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

The GMSB0512132CEU is a USB mini B receptacle from the GMSB051 series, with 5 contacts in a vertical through-hole orientation for solder termination to the PCB. Rated 30 VDC and 1.5 A per contact, with gold-plated contacts rated for 10,000 mating cycles — the gold finish handles repeated connect/disconnect in field-service or test equipment without contact fretting.

Shielding and flame rating

The shell is steel and stainless steel, providing EMI shielding for the signal pair in a mini-B interface. The housing material meets UL94 V-0 flammability rating.

Frequently asked questions

Where can I buy GMSB0512132CEU and how do I get a price?

The GMSB0512132CEU is available to order against BOM quantity. Request a quote through the distributor for current pricing and lead time.

What is GMSB0512132CEU's listed gender on this USB / HDMI Cable Assemblies line?

The GMSB0512132CEU is a Receptacle (female) USB mini B connector.
