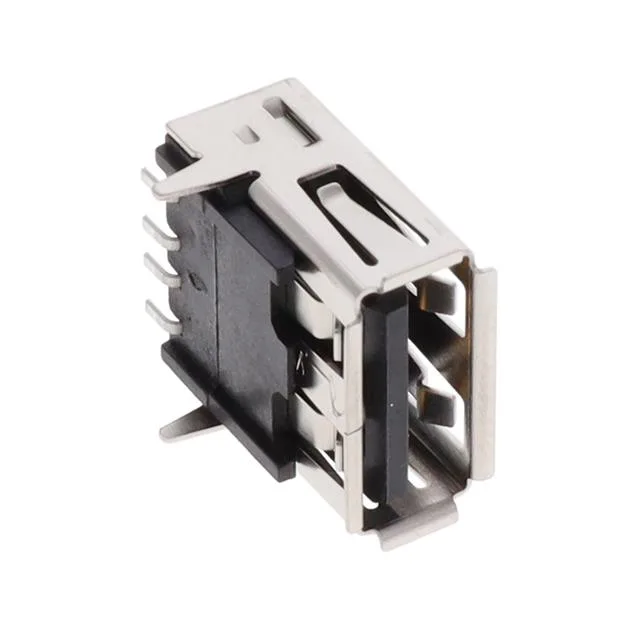

USB-A receptacle, right-angle, shielded
The GSB14121P3EU is a 4-contact USB-A receptacle from Amphenol ICC's GSB1 series, configured for USB 2.0 signal rates. Through-hole right-angle mounting with solder termination.
Amphenol GSB14121P3EU USB-A Receptacle, 4 Contacts, Shielded
MPNGSB14121P3EU
Active
Amphenol ICC GSB1 USB-A receptacle, order code GSB14121P3EU, 4 contacts, single port, USB 2.0, shielded, gold-plated contacts, through-hole right-angle, solder termination, tray package.
$0.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGSB1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GSB1 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VDC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
What compliance documentation is available for the GSB14121P3EU?
The GSB14121P3EU is ROHS3 compliant. Additional compliance documentation is available from Amphenol ICC upon request.
