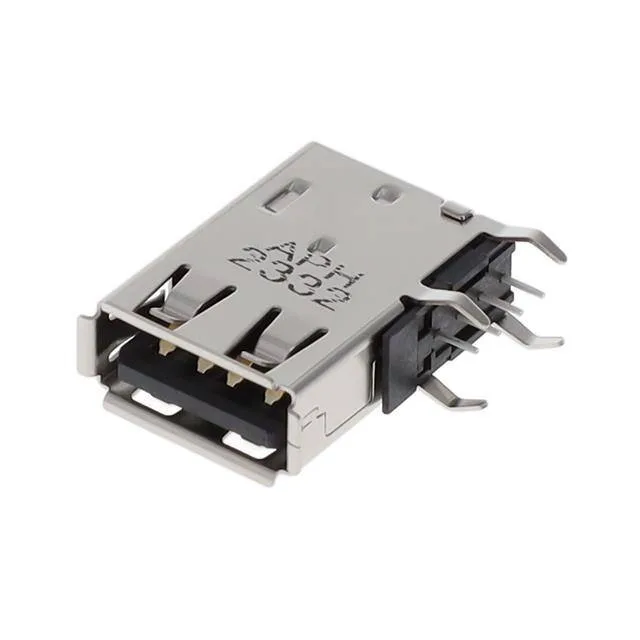

GSB19151TP2EU — Amphenol product photo
Amphenol

Amphenol GSB19151TP2EU USB-A Receptacle, 4-Pin, Shielded

MPNGSB19151TP2EU
Active

Amphenol ICC (Commercial Products) GSB1 USB-A receptacle, order code GSB19151TP2EU, 4 contacts, USB 2.0, shielded, through-hole right-angle, solder termination, gold contact finish, 1.5 A, 30 VDC.

$0.6200Ref. price · indicative, final on quote
GSB19151TP2EU datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

GSB19151TP2EU Technical Specifications
ParameterValue
SeriesGSB1
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VDC
Current rating1.5A
Positions4
Mounting featureVertical
Operating temperature-40°C~85°C
Insulation colorBlack
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Contact system and USB 2.0 signal path

The GSB19151TP2EU is the 4-contact USB-A receptacle in Amphenol ICC's GSB1 series, specified for USB 2.0 data rates.

Board-mount and compliance

Through-hole right-angle mounting with vertical orientation — the upright DIP footprint suits standard PCB layouts. The housing is rated UL94 V-0.
