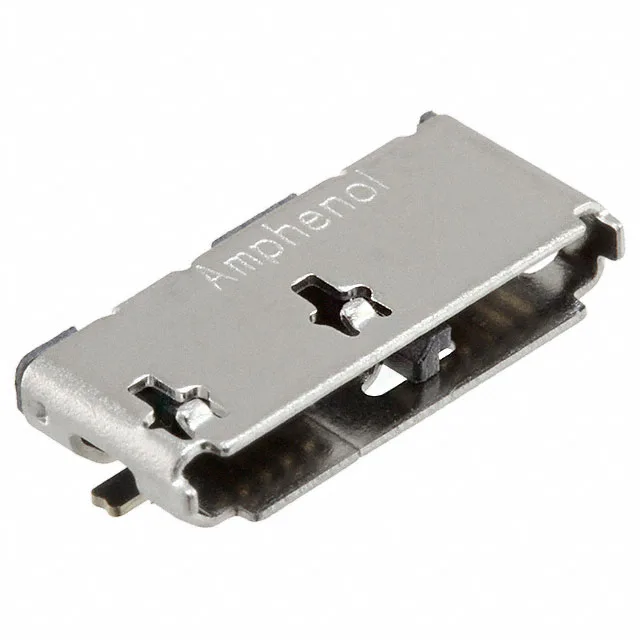

Amphenol ICC (Commercial Products) GSB4 USB - micro B receptacle, order code GSB443133HR, 10 contacts, USB 3.2 Gen 2, shielded, gold-plated contacts, surface-mount right-angle, solder termination, 5000 mating cycles.
| Parameter | Value |
|---|---|
| Series | GSB4 |
| Mounting type | Surface Mount, Right Angle |
| Connector type | USB - micro B |
| Positions | 10 |
| Mounting feature | Horizontal |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The GSB443133HR is the 10-contact USB 3.2 Gen 2 micro-B receptacle in Amphenol ICC's GSB4 series, supporting SuperSpeed+ data rates up to 10 Gbps. The shielded steel shell and gold-plated contacts are rated for 5000 mating cycles, with solder retention features holding the connector to the board during reflow.
The GSB443133HR is a receptacle (female) USB - micro B connector.
The GSB443133HR is ROHS3 compliant.
