HSDNARPPCB12B HSD Fakra Quadraxial Plug, 100 Ohm, Obsolete

MPNHSDNARPPCB12B
Obsolete

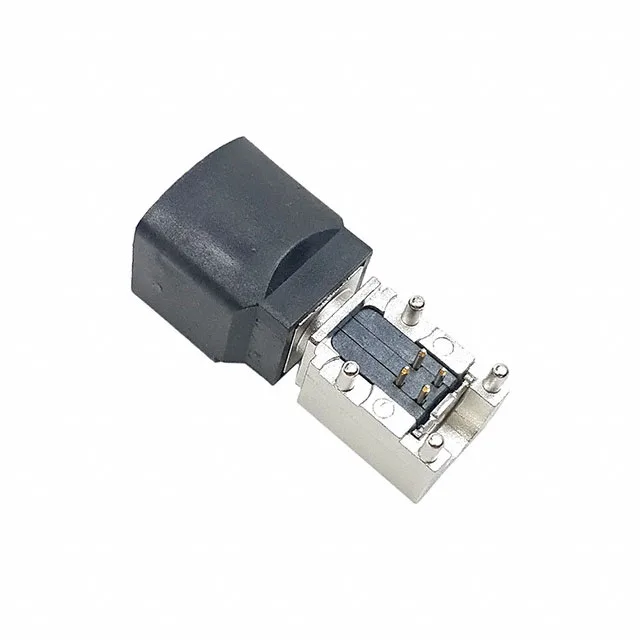

Rosenberger HSD Fakra quadraxial plug, HSDNARPPCB12B, 100 Ohm, right-angle through-hole, gold center contacts, latch lock, Code A keying, tray package.

$1.3100Ref. price · indicative, final on quote
HSDNARPPCB12B datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

HSDNARPPCB12B Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeHSD®, Fakra, Quadraxial
Fastening typeLatch Lock
Operating temperature-40°C~105°C
Body materialZinc Alloy
Housing colorBlack
Dielectric materialThermoplastic
Center contact materialCopper Alloy
PackageTray
FeaturesCode A
Impedance100Ohm
Body finishNickel
Mating cycles25
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What This HSD Fakra Quadraxial Plug Is

The Rosenberger HSDNARPPCB12B is a single-port HSD Fakra quadraxial plug — a shielded, 100 Ohm impedance connector designed for high-speed differential signals in automotive camera, infotainment, and telematics harnesses. It uses a Code A keying variant, mates with the corresponding HSD Fakra receptacle, and terminates to the PCB through right-angle through-hole solder tails.

The 100 Ohm impedance is matched to differential pair routing for LVDS, automotive Ethernet, or USB signals — the quadraxial contact arrangement carries two signal pairs plus a ground plane. The 25 mating cycles rating is low; this plug is intended for a permanent or semi-permanent harness connection, not frequent disconnect in field service.

Through-hole, right-angle mounting with solder termination on both the signal contacts and the shield. The body finish is nickel over zinc alloy, providing EMI shielding continuity through the connector shell.

Frequently asked questions

Where can I buy HSDNARPPCB12B?

HSDNARPPCB12B is obsolete but can be sourced through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

What is the replacement for HSDNARPPCB12B?

For new designs, select a current-production HSD Fakra quadraxial plug with the same 100 Ohm impedance, Code A keying, and right-angle through-hole termination.
