HSD Fakra Quadraxial Plug — 100 Ohm, Right-Angle PCB Mount

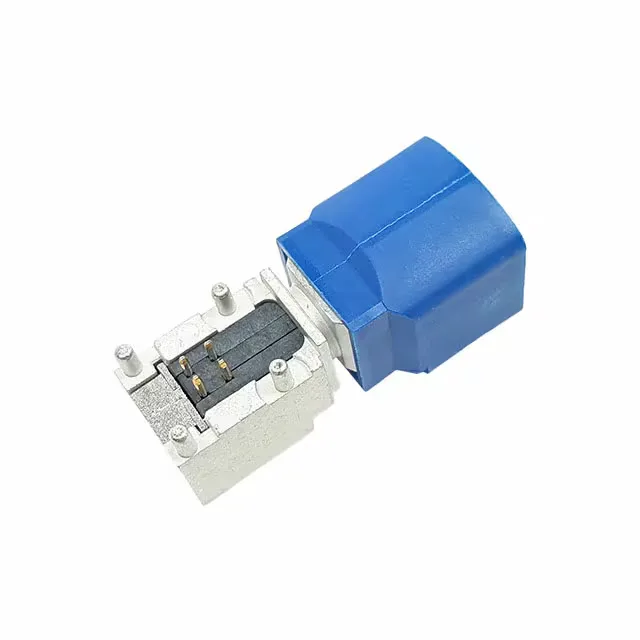

The Rosenberger HSDNCRPPCB19B is a single-port HSD® Fakra quadraxial plug with male pin contacts, designed for 100 Ohm differential signal paths in automotive camera, infotainment, and ADAS link applications. The latch lock secures the mating half against vibration — a standard requirement for vehicle harnesses — and the zinc alloy body with tin finish provides the RF shielding the quadraxial interface demands.
100 Ohm Impedance and Signal Integrity Fit
The 100 Ohm characteristic impedance matches the differential pair requirement for automotive Ethernet (BroadR-Reach / 100BASE-T1) and LVDS camera links. The gold-plated center contacts on copper alloy keep the signal path corrosion-free through the 25 mating cycles the connector is rated for — that cycle count is low enough that this part is best suited for a one-time assembly or a bench-level test point, not a daily-disconnect harness.
Mating Cycles and Field Service Reality
Rated for 25 mating cycles, this plug is not designed for frequent field disconnect. The gold-on-copper-alloy center contact resists fretting corrosion within that cycle budget, but the tin-finished zinc body will show wear if cycled past the rating. For a production harness that mates once at the assembly plant and stays mated, the 25-cycle rating is more than adequate. If your service procedure requires repeated unmate/remate, look at the HSD family members with higher cycle-life plating — the contact finish, not the housing, is the limit.
