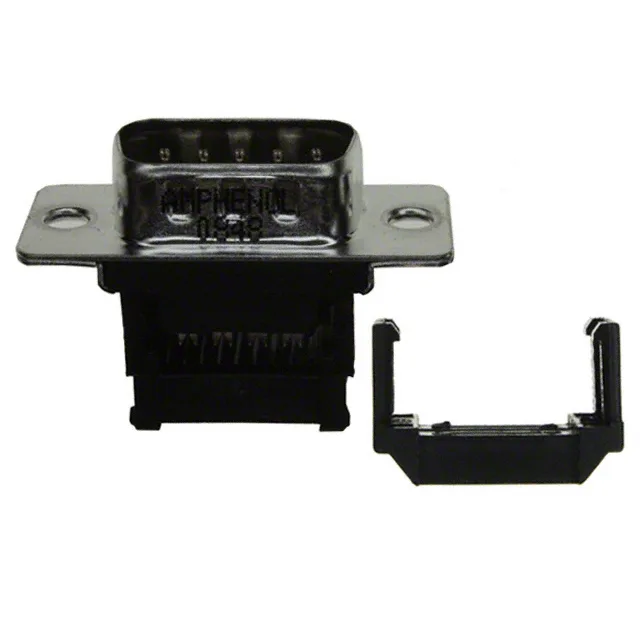

L17DEFRA09P — Amphenol product photo
Amphenol

Amphenol L17DEFRA09P D-Sub Plug, 9-Pos IDC, 3A, 250V

MPNL17DEFRA09P
Active

Amphenol DFR series D-sub plug, 9 positions, 2 rows, IDC ribbon cable termination, gold flash contacts, 3A, 250V, free hanging, black housing.

$2.7100Ref. price · indicative, final on quote
L17DEFRA09P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

L17DEFRA09P Technical Specifications
ParameterValue
SeriesDFR
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current rating3A
Wire gauge26 AWG
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesFeed Through, Grounding Indents, Strain Relief
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thicknessFlash

Product details

9-Position D-Sub Plug for IDC Ribbon Cable

The black glass-filled thermoplastic housing meets UL94 V-0, and the steel shell with tin plating includes grounding indents and an unthreaded flange for panel mounting. This is the plug half — mates with a standard DE-9 size receptacle.

Termination is IDC for 26 AWG ribbon cable, making this a factory-terminated assembly part — no crimp tooling needed, but the cable must be stripped and aligned to the slot pattern. The free-hanging (in-line) mount suits cable-to-panel or cable-to-board harnesses where the plug floats on the cable rather than being bolted to a chassis.

Frequently asked questions

Where can I buy L17DEFRA09P?

Submit a request for current pricing and availability.

What connector mates with L17DEFRA09P?

L17DEFRA09P is a D-sub plug with shell size DE-9 (E layout). It mates with any standard DE-9 size D-sub receptacle — typically a female socket with the same 9-position, 2-row layout.

Is L17DEFRA09P RoHS compliant?

Yes, L17DEFRA09P is RoHS compliant as listed.

What wire gauge does L17DEFRA09P accept?

The IDC termination is specified for 26 AWG ribbon cable.
