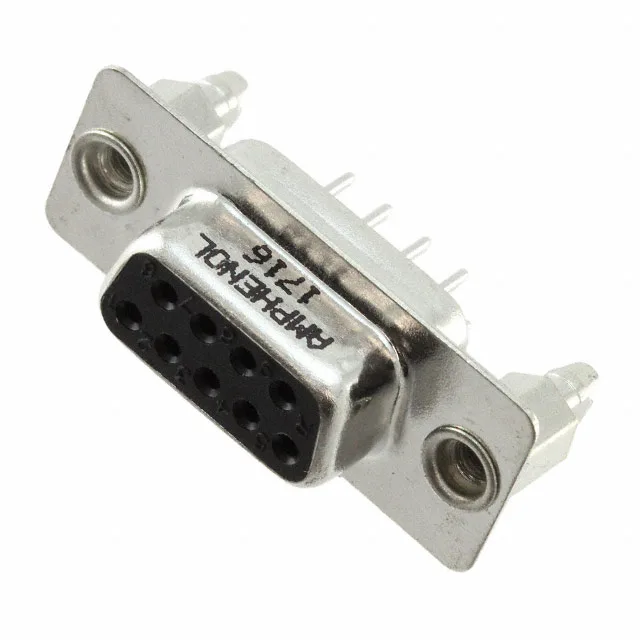

L77SDEH09SOL2RM5C309 — Amphenol product photo
Amphenol

L77SDEH09SOL2RM5C309 D-Sub Receptacle, 9 Pos, 3A, Gold

MPNL77SDEH09SOL2RM5C309
Active

Amphenol SD series D-Sub receptacle, 9 positions, 2 rows, female sockets, through-hole solder, 3A, 250V, 30.0µin gold contact finish, board lock, black shell.

$2.1100Ref. price · indicative, final on quote
L77SDEH09SOL2RM5C309 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

L77SDEH09SOL2RM5C309 Technical Specifications
ParameterValue
SeriesSD
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current rating3A
Contact formStamped
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

The Amphenol L77SDEH09SOL2RM5C309 is a 9-position D-Sub receptacle with female sockets, part of the SD series. It uses the standard shell layout 1 (DE, E).

Rated 3A per contact at 250V, which is typical for signal-level D-Sub duty — driving RS-422 lines, low-power sensor loops, or control signals where the current per pin stays well under the limit.

Through-hole solder termination with a board-side 4-40 threaded flange — the flange lets you bolt the receptacle to a panel or bracket for strain relief, not just rely on the solder joints. The board lock feature adds mechanical retention during reflow or wave solder, and the steel tin-plated shell provides EMI shielding when mated with a grounded plug.
