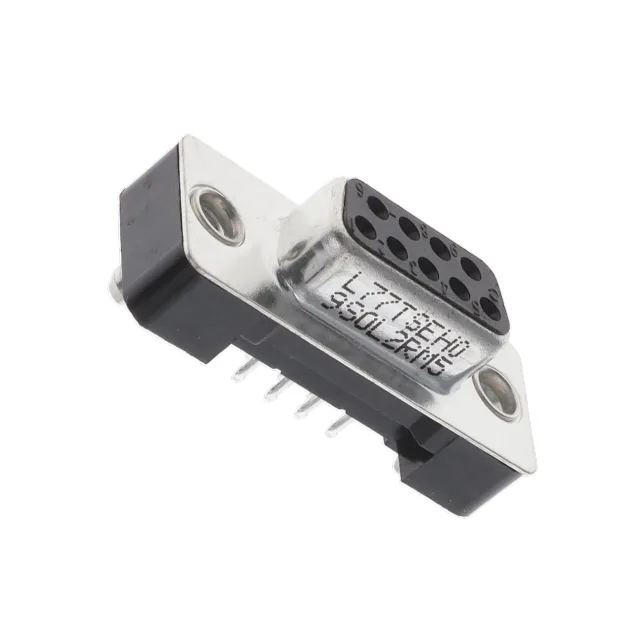

L77TSEH09SOL2RM5 D-Sub Receptacle, 9 Pos, 5A, 600V

MPNL77TSEH09SOL2RM5
Active

Amphenol TS series D-Sub receptacle, 9 positions, 2 rows, DE shell size, 5A, 600V, through-hole solder, gold flash contacts, board lock, 4-40 flange.

$1.5400Ref. price · indicative, final on quote
L77TSEH09SOL2RM5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

L77TSEH09SOL2RM5 Technical Specifications
ParameterValue
SeriesTS
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating600V
Current rating5A
Contact formStamped
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Dielectric materialThermoplastic, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions9
Contact finish thicknessFlash
