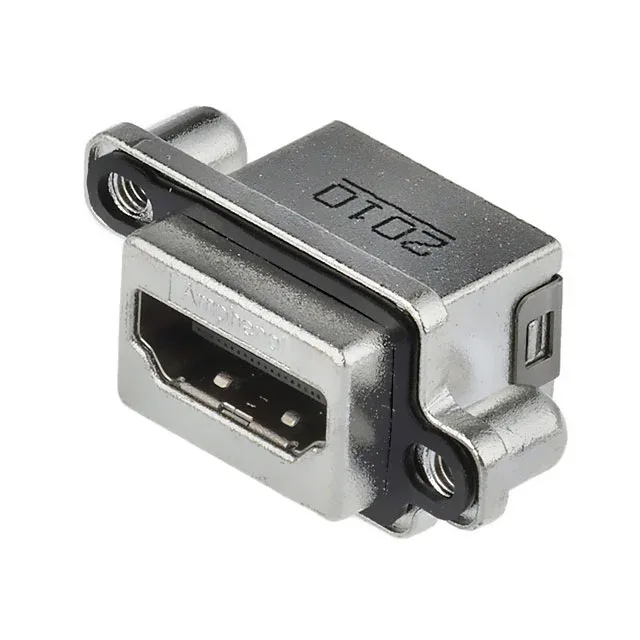

Amphenol ICC MHDR HDMI receptacle, order code MHDRA111M0, 19 contacts, single port, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination, IP67 rated.
| Parameter | Value |
|---|---|
| Series | MHDR |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | HDMI |
| Voltage - rated | 40VAC |
| Current rating | 0.5A |
| Positions | 19 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Zinc Alloy, Die Cast |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Gender | Receptacle |
| Package | Box |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Number of ports | 1 |
The MHDRA111M0 is the 19-contact shielded HDMI receptacle in Amphenol ICC's MHDR series, with a panel-mount right-angle through-hole footprint. Gold-plated contacts rated 0.5 A at 40 VAC, with 10,000 mating cycles — the plating and cycle life suit frequent-mate field-service or test-port duty.
The MHDRA111M0 is RoHS compliant. The manufacturer provides a RoHS certificate of compliance; the part carries no UL or IEC listing in the published spec record.
