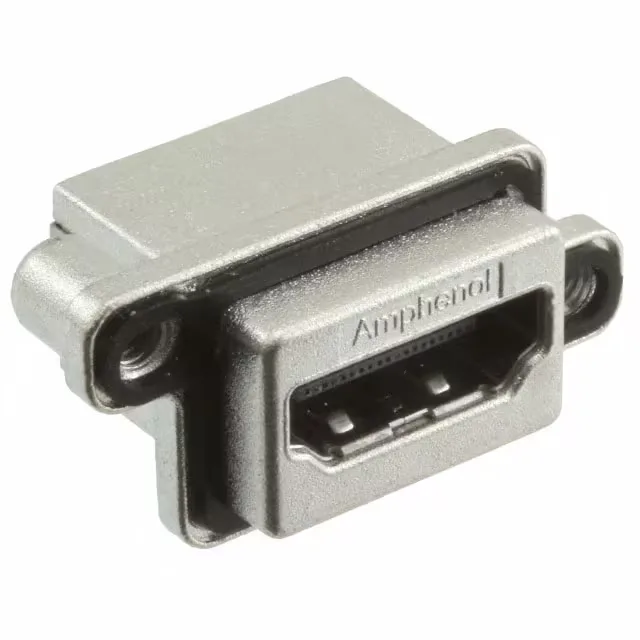

MHDRA51130 — Amphenol product photo
Amphenol

Amphenol ICC MHDR MHDRA51130 HDMI Receptacle, 19-Pos, IP67

MPNMHDRA51130
Active

Amphenol ICC (Commercial Products) MHDR HDMI receptacle, order code MHDRA51130, 19 contacts, single port, shielded, IP67 dust-tight and waterproof, gold contact finish, panel mount through-hole right-angle, solder termination.

$16.18Ref. price · indicative, final on quote
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MHDRA51130 Technical Specifications
ParameterValue
SeriesMHDR
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeHDMI
Voltage - rated40VAC
Current rating0.5A
Positions19
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Shell (Shielding material)Zinc Alloy, Die Cast
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

Sealed HDMI receptacle for panel-mount applications

The MHDRA51130 is the 19-contact IP67-sealed HDMI receptacle in Amphenol ICC's MHDR series, designed for panel-mount through-hole right-angle installation with a vertical flange. The UL94 V-0 rated housing and board guide aid alignment during assembly.

Mating cycle and contact plating

Gold contact finish and 10000 mating cycles suit this receptacle for repeated connect-disconnect duty in test equipment or industrial panel interfaces where the connector stays mated for long periods between service events.
