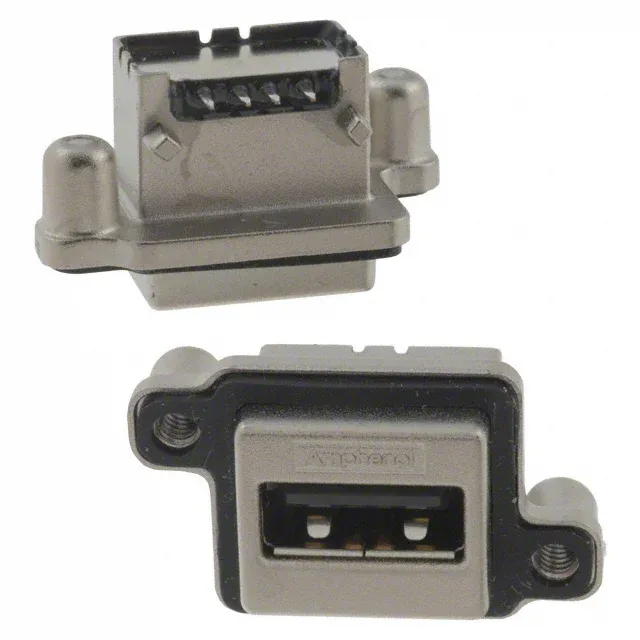

MUSB-A111-30 — Amphenol product photo
Amphenol

MUSB-A111-30 Amphenol ICC USB-A Receptacle, IP67, 1.5A

MPNMUSB-A111-30
Active

Amphenol ICC MUSB series USB-A receptacle, order code MUSB-A111-30, 4 contacts, USB 2.0, IP67 sealed, panel mount through-hole right-angle, solder termination, gold-plated contacts, shielded.

$10.6700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSB-A111-30 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBulk
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB-A with IP67 seal

The MUSB-A111-30 is a 4-contact USB-A receptacle from the Amphenol ICC MUSB series, configured for panel-mount through-hole right-angle installation with a horizontal flange. Rated 1.5 A per contact, the receptacle carries a USB 2.0 specification and an IP67 rating for dust and temporary immersion when mated.

Gold contacts rated 1500 cycles

Gold-plated mating contacts support 1500 mating cycles, exceeding the USB 2.0 standard for duty in field-service or frequent-connect applications.

Frequently asked questions

What is the mating half for the MUSB-A111-30?

The MUSB-A111-30 mates with a standard USB-A plug. The IP67 rating is achieved when mated with a corresponding sealed MUSB series plug.
