Panel-mount USB-A with IP67 seal
The MUSBAA11M0 is a 4-contact USB 2.0 Type-A receptacle from the Amphenol ICC MUSB series, built for panel-mount applications where dust and water ingress are a concern.

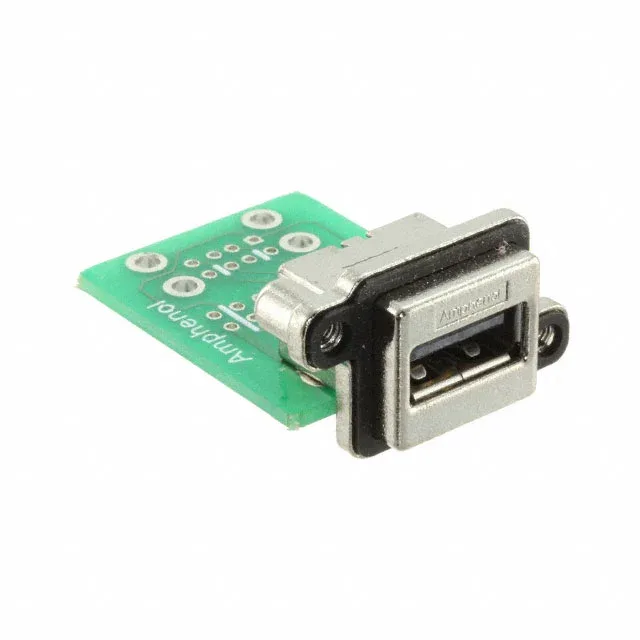

Amphenol MUSBAA11M0 USB-A Receptacle, IP67, Shielded
MPNMUSBAA11M0
Active
Amphenol ICC MUSB series USB-A receptacle, order code MUSBAA11M0, 4 contacts, USB 2.0, shielded, IP67, gold contact finish, panel mount with flange horizontal, solder termination, 1.5 A, -40°C to 105°C.
$17.86Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMUSB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount |
| Connector type | USB-A (USB TYPE-A) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Shielding | Shielded |
| Termination | PC Board, Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
Where can I buy MUSBAA11M0 and get a price?
The MUSBAA11M0 is available to order against BOM quantities. Request a quote for current pricing and lead time.
