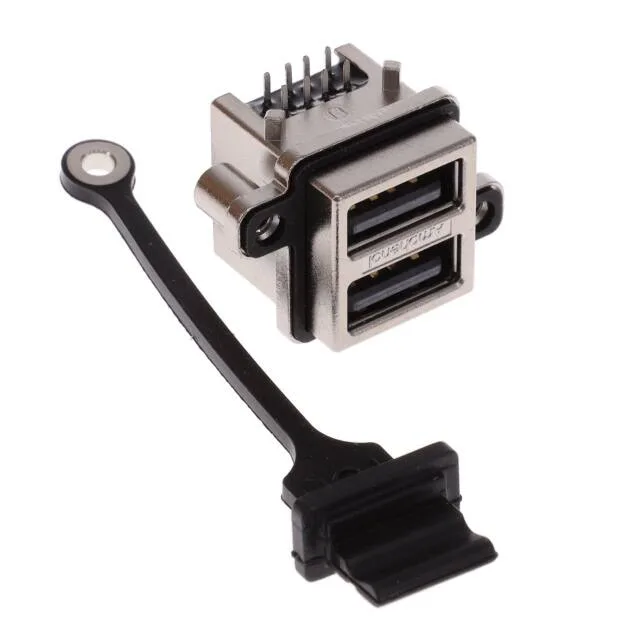

Amphenol ICC MUSB series USB-A (USB TYPE-A) stacked receptacle, order code MUSBC11135, 8 contacts, 2 ports, USB 2.0, IP67, panel mount through-hole right-angle, solder termination, gold-plated contacts, shielded.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Current rating | 1.5A |
| Positions | 8 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Cover |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The MUSBC11135 is the 8-contact, 2-port stacked USB-A receptacle in Amphenol ICC's MUSB series, built for panel-mount through-hole right-angle installation with a flange and horizontal orientation. Rated USB 2.0, it carries 1.5 A per contact, gold-plated mating surfaces, and a shielded copper-alloy shell with UL94 V-0 rated housing. The IP67 rating seals against dust and water ingress when mated.
It is a USB-A (USB TYPE-A) stacked receptacle with 8 contacts across 2 ports.
The part is RoHS compliant per Amphenol ICC standard documentation. No additional compliance records are on file.
