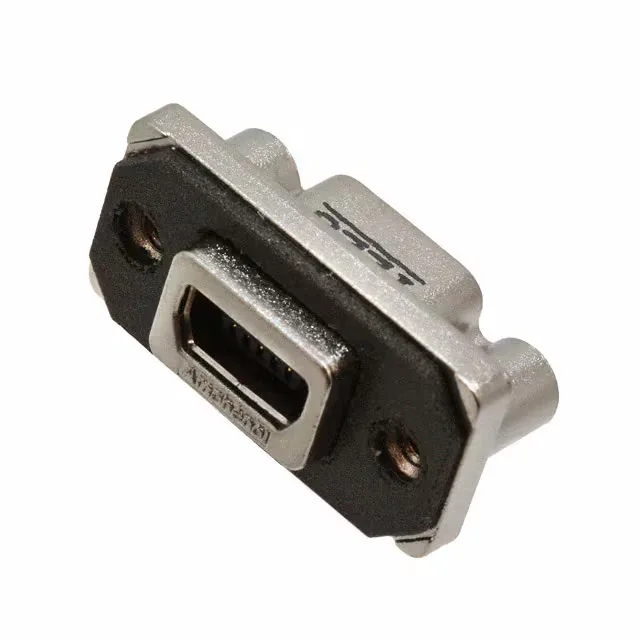

MUSBE15104 — Amphenol product photo
Amphenol

MUSBE15104 Amphenol ICC USB 2.0 mini AB Receptacle, IP67

MPNMUSBE15104
Active

Amphenol ICC MUSB series USB 2.0 mini AB receptacle, order code MUSBE15104, 5 contacts, 1 A, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination, IP67 rated.

$10.2300Ref. price · indicative, final on quote
MUSBE15104 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBE15104 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB - mini AB
Current rating1A
Positions5
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBulk
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Ruggedized USB 2.0 mini AB with IP67 sealing

The MUSBE15104 is the 5-contact IP67-sealed member of Amphenol ICC's MUSB mini AB receptacle line, carrying USB 2.0 signal integrity through a shielded copper-alloy shell.

Sealed interface and mating durability

The IP67 rating — dust-tight and waterproof — comes from the flange-mount horizontal panel fit; the O-ring seals at the panel face, not the thread, so the seal holds only when the mating plug is fully engaged. At 5000 mating cycles, the gold-on-copper-alloy contacts outlast standard USB receptacles by a factor of 5–10×, matching the reconnect duty of field-service equipment or portable instrumentation.

Frequently asked questions

What compliance documentation does Amphenol ICC provide for MUSBE15104?

RoHS compliance is confirmed. No REACH or IEC certificate is referenced in the available documentation.

What is the closest pin-compatible alternative in the MUSB series?

No pin-compatible alternative is listed in the MUSB series for this mini AB receptacle. The MUSBE15104 is the sole IP67 mini AB variant in the series with a 5-contact, right-angle panel-mount footprint.
