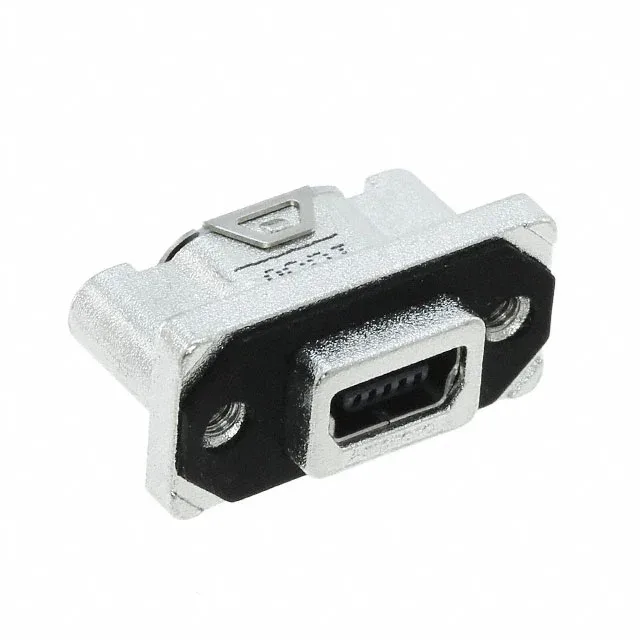

Amphenol ICC MUSBR series USB 2.0 mini B receptacle, order code MUSBR-B151-30, 5 contacts, 1 A, IP67, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | MUSBR |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | USB - mini B |
| Current rating | 1A |
| Positions | 5 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C~105°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSBR-B151-30 is a USB 2.0 mini B receptacle from the Amphenol ICC MUSBR series, carrying 5 contacts rated 1 A. The shell is shielded with steel and stainless materials; the gold-plated contacts support 5000 mating cycles.
Rated IP67 dust-tight and waterproof when mated, the MUSBR-B151-30 mounts via a horizontal flange through a panel cutout with through-hole right-angle solder tails.
The MUSBR-B151-30 is RoHS compliant. UL and other documentation are provided by the manufacturer.
The MUSBR-B151-30 is rated for 5000 mating cycles with gold-plated contacts.
